Isilawuli sokuqondisa indawo yokupaka

indawo yasendlini isilawuli KT-WB12

Imingcele yezobuchwepheshe

Impahla yegobolondo: ishidi likathayela

Indlela yokuxhumana: Isiteshi esingu-1 CAN, iziteshi ezi-2 RS485

I-voltage esebenzayo: AC 110 ~ 240V

Izinga lokushisa lokusebenza: -30 ℃ ~ +75℃

Isisindo esiphelele: 3.5Kg

Ukuswakama kwemvelo: ≤90%RH (akukho ukujiya)

Ukusetshenziswa kwamandla: ≤2W

Ibanga lokuxhumana: CAN: ≤1000m RS485: ≤300m

Umthamo we-node: 25

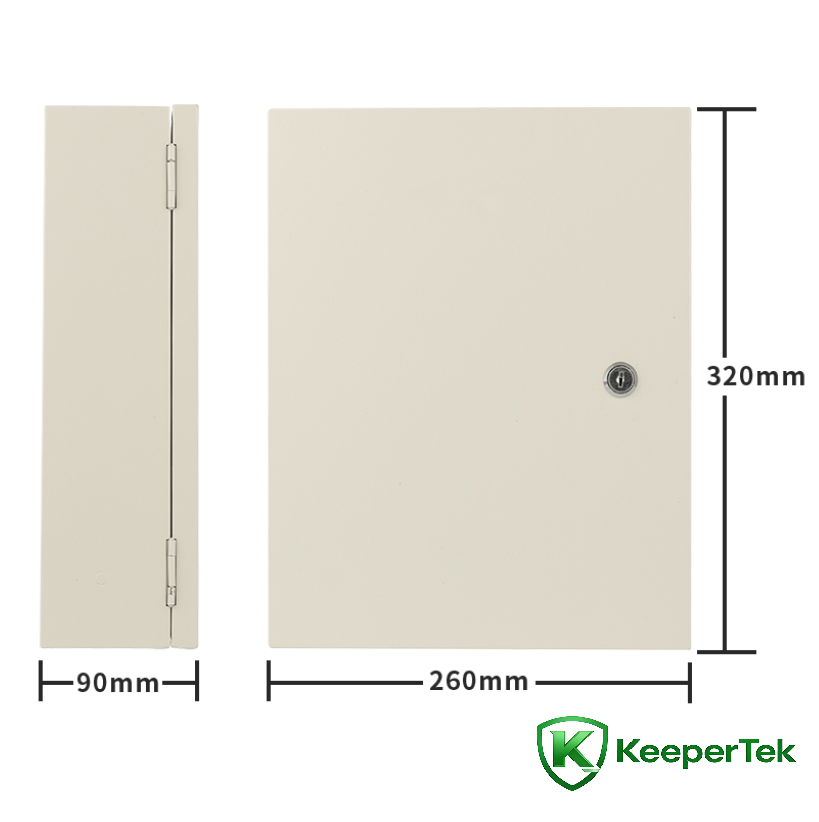

Usayizi wokucaciswa: 320*260*90mm

Amasistimu asebenzayo: uhlelo lokuqondisa indawo yokupaka ye-ultrasonic yangaphakathi

Izici

Isilawuli sendawo yasendlini sisetshenziselwa ukubona ngokujikeleza isimo sezithonjana ezixhunyiwe futhi silayishe ulwazi olufanele kusilawuli sezinga eliphezulu. I-Adopt RS485, i-CAN bus (noma i-Ethernet) indlela yokuxhumana eyingxube yokuxazulula izinkinga zokuxhumana okude okungathembekile, ukunwetshwa kwenani lamanodi enethiwekhi, izinkinga zokuphatha iqembu, njll.

Ukwamukela i-32-bit ARM processor ethuthuke emhlabeni wonke kanye nedizayini yezinga lezimboni ngokugcwele ukuze kuqinisekiswe ukuzinza nokuthembeka komkhiqizo.

Lonke isilawuli sesistimu singathuthukiswa ukude ukuze kube lula ukugcinwa nokuthuthukiswa kwesistimu futhi sihlangabezane nezidingo zomsebenzisi ngaso sonke isikhathi.

Isebenzisa i-CAN (noma i-Ethernet) ne-RS485 hybrid networking, inamandla okuxhumana aqinile, ukuxhumana kwedatha okuzinzile nokuthembekile, kanye nebanga elide lokudlulisela.

Idizayini yokusebenzelana ezimele ye-dual-channel RS485, ekwazi ukuphatha imitshina engama-60 noma izikrini zokuqondisa

Izinto zokusebenza zinesekethe emfishane, i-overvoltage, kanye nemisebenzi yokuvikela ukugcwala ngokweqile ukuvikela ukulimala kukagesi ezintweni ezihlobene okubangelwa amaphutha ezintambo ngesikhathi sokwakha.

Idizayini iyonke ingeyezimboni futhi iye yahlolwa ngokuqinile kugesi omile, ukushaywa kombani, ukukhuphuka, nama-pulses eqembu ukuze kuqinisekiswe ngempumelelo ukusetshenziswa okuthembekile kwesisetshenziswa.

Ingakwazi ukubona ngokushesha nangokuphumelelayo izimo ezihlukahlukene zemishini. Ngemva kokuqedwa kokufakwa, ukutholwa ngokuchofoza okukodwa kwesimo sokuxhumana semishini ye-RS485 kungenziwa ukuze kuhlonzwe ngokushesha isimo sokuxhunywa kwebhasi.
