Isilawuli sokuqondisa indawo yokupaka

Ukulawulwa kwenodi yasendlini idivayisi KT-WB11

Imingcele yezobuchwepheshe

Impahla yegobolondo: ishidi likathayela

Indlela yokuxhumana: 2-way CAN@20kbps

I-voltage esebenzayo: AC 110 ~ 240V

Izinga lokushisa lokusebenza: -30 ℃ ~ +75℃

Isisindo esiphelele: 3.2Kg

Ukuswakama kwemvelo: ≤90%RH (akukho ukujiya)

Ukusetshenziswa kwamandla: ≤2W

Ibanga lokuxhumana: ≤1000m

Umthamo we-node: 25

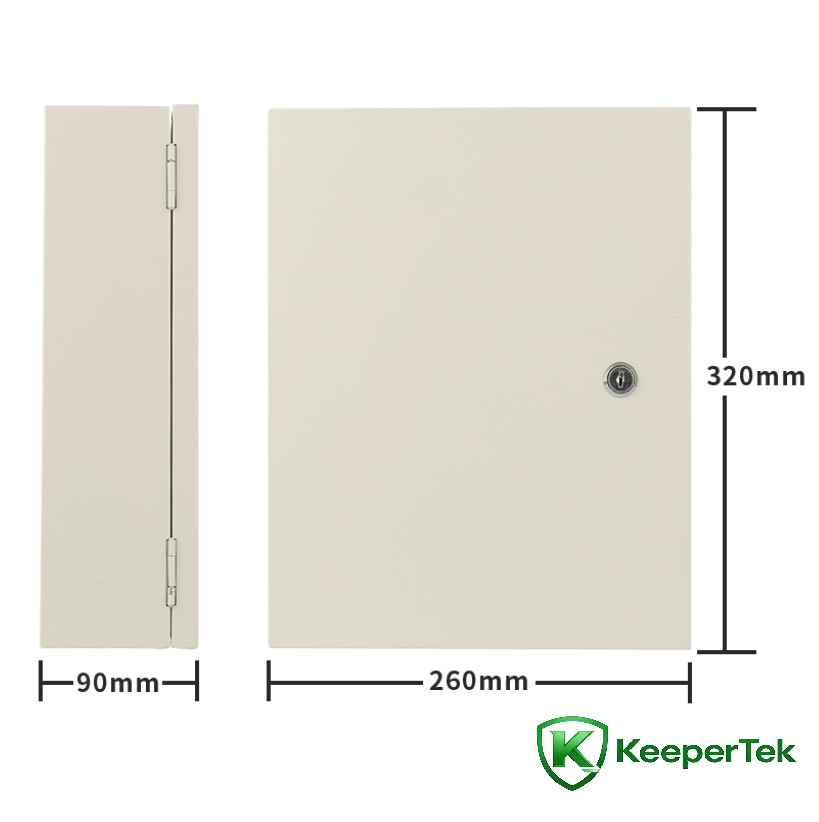

Usayizi wokucaciswa: 320*260*90mm

Amasistimu asebenzayo: uhlelo lokuqondisa indawo yokupaka ye-ultrasonic yangaphakathi

Izici

Isilawuli se-node yasendlini sifinyeza lonke ulwazi lwesikhala sokupaka endaweni futhi silayisha umbhalo wedatha kusilawuli esimaphakathi sasendlini. Ngesikhathi esifanayo, ithola idatha yolwazi lwendawo yokupaka etholakalayo evela kusilawuli esiphakathi kwasendlini bese siyilanda kusilawuli sendawo yasendlini. Izilawuli ze-node zangaphakathi zingaxazulula ngempumelelo inkinga yomthamo wemishini yokulawula i-node yasendlini ekuxhumekeni kwenethiwekhi enkulu. ； Noma isetshenziswe ezindaweni zokupaka ezinezakhiwo eziyinkimbinkimbi, ezingaqinisekisa ngempumelelo ukuzinza kokuxhumana kwesistimu.

Ukwamukela i-32-bit ARM processor ethuthuke emhlabeni wonke kanye nedizayini yezinga lezimboni ngokugcwele ukuze kuqinisekiswe ukuzinza nokuthembeka komkhiqizo.

Lonke isilawuli sesistimu singathuthukiswa ukude ukuze kube lula ukugcinwa nokuthuthukiswa kwesistimu futhi sihlangabezane nezidingo zomsebenzisi ngaso sonke isikhathi.

Ukwamukela idizayini yokuxhumana yezinga lezimboni ze-CAN, ukuxhumana kwesignali kuzinzile futhi kuthembekile, futhi ibanga lokudlulisela lingafinyelela ku-1 km.

Izinto zokusebenza zinesekethe emfishane, i-overvoltage, kanye nemisebenzi yokuvikela ukugcwala ngokweqile ukuvimbela ukulimala kukagesi ezintweni ezihlobene ngenxa yamaphutha ezintambo ngesikhathi sokwakha.

Idizayini iyonke ingeyezimboni futhi iye yahlolwa ngokuqinile kugesi omile, ukushaywa kombani, ukukhuphuka, nama-pulses eqembu ukuze kuqinisekiswe ngempumelelo ukusetshenziswa okuthembekile kwesisetshenziswa.

Ingakwazi ukuphatha iqembu lokulawula isifunda, ibone ukuphathwa okuthuthukisiwe kokuxhumana kwenethiwekhi, futhi ibone imisebenzi efana nokuguqulwa kwedatha kanye nokucutshungulwa kweqembu ledatha.

Sekela ukuthuthukiswa okukude.
