Isilawuli sokuqondisa indawo yokupaka

indawo engenantambo yasendlini isilawuli KT-WB13

Imingcele yezobuchwepheshe

Impahla yegobolondo: ishidi likathayela

Indlela yokuxhumana: Isiteshi esingu-1 CAN, isiteshi esingu-1 RS485, isiteshi esingu-1 i-RF470MHz

I-voltage esebenzayo: AC 110 ~ 240V

Izinga lokushisa lokusebenza: -30 ℃ ~ +75℃

Isisindo esiphelele: 3.5Kg

Ukuswakama kwemvelo: ≤90%RH (akukho ukujiya)

Ukusetshenziswa kwamandla: ≤2W

Ibanga lokuxhumana: CAN: ≤1000m RS485: ≤300m

Umthamo we-node: 25

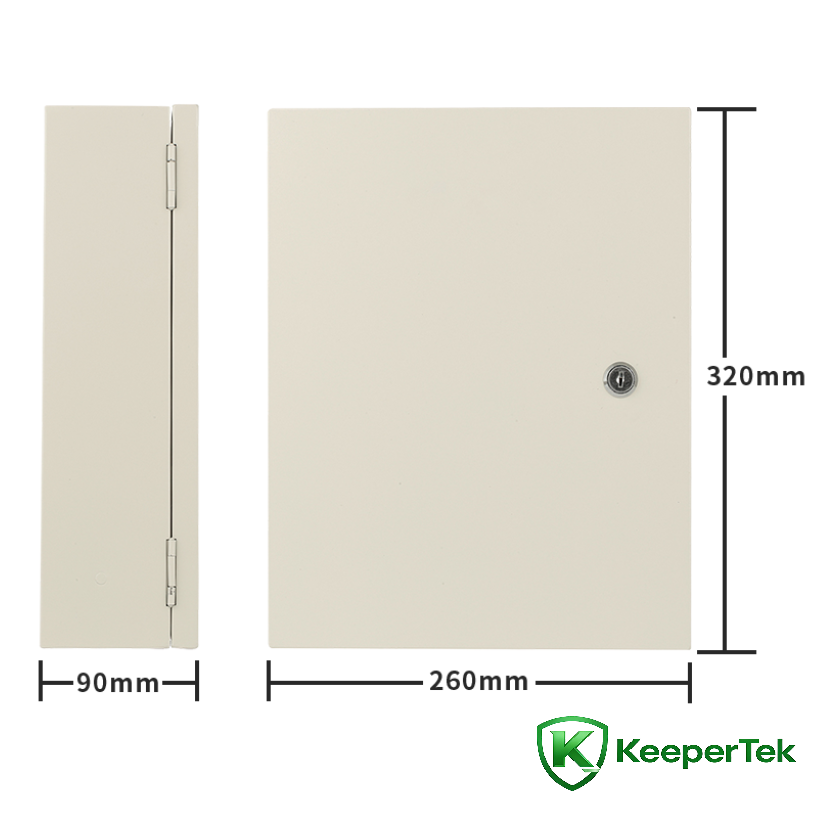

Usayizi wokucaciswa: 320*260*90mm

Isistimu esebenzayo: Isistimu yokuqondisa indawo yokupaka egalaji enezinhlangothi ezintathu

Izici

Isilawuli sendawo yokupaka engenazintambo esingaphakathi endlini siphethe amathuluzi aso angaphansi angenazintambo (izinkomba zendawo yokupaka ezingenazintambo, izitholi zendawo yokupaka ezingenazintambo) futhi silayisha ulwazi lwesimo sokupaka kusilawuli esimaphakathi. Ngesikhathi esifanayo, isilawuli sendawo engenantambo yasendlini sihambisana namadivayisi anezintambo zesistimu, anelisa ngokugcwele ukusetshenziswa kwezindawo zokupaka lapho kuxutshwa khona izindawo zokupaka eziyimishini kanye nezindawo zokupaka ezijwayelekile.

Ukwamukela i-32-bit ARM processor ethuthuke emhlabeni wonke kanye nedizayini yezinga lezimboni ngokugcwele ukuze kuqinisekiswe ukuzinza nokuthembeka komkhiqizo.

Lonke isilawuli sesistimu singathuthukiswa ukude ukuze kube lula ukugcinwa nokuthuthukiswa kwesistimu futhi sihlangabezane nezidingo zomsebenzisi ngaso sonke isikhathi.

Yamukela idizayini yenethiwekhi yamashaneli amaningi ukuze ugweme ukuphazamiseka okungenantambo kwenethiwekhi yangaphakathi futhi uvimbele ukuxhumana okungenantambo kwangaphandle kwe-crosstalk

Izinto zokusebenza zinesekethe emfishane, i-overvoltage, kanye nemisebenzi yokuvikela ukugcwala ngokweqile ukuvimbela ukulimala kukagesi ezintweni ezihlobene ngenxa yamaphutha ezintambo ngesikhathi sokwakha.

Idizayini iyonke ingeyezimboni futhi iye yahlolwa ngokuqinile kugesi omile, ukushaywa kombani, ukukhuphuka, nama-pulses eqembu ukuze kuqinisekiswe ngempumelelo ukusetshenziswa okuthembekile kwesisetshenziswa.

Isixhumi esibonakalayo se-RS-485 sokuhlukaniswa kwezimboni esigodliwe, esivumela ukuhlanganiswa okuphelele kwemishini enezintambo nemishini engenantambo, kanye nokuguquguquka okuphezulu kokusetshenziswa.

Sekela ukuthuthukiswa okukude
