Umshini wokubona ubuso

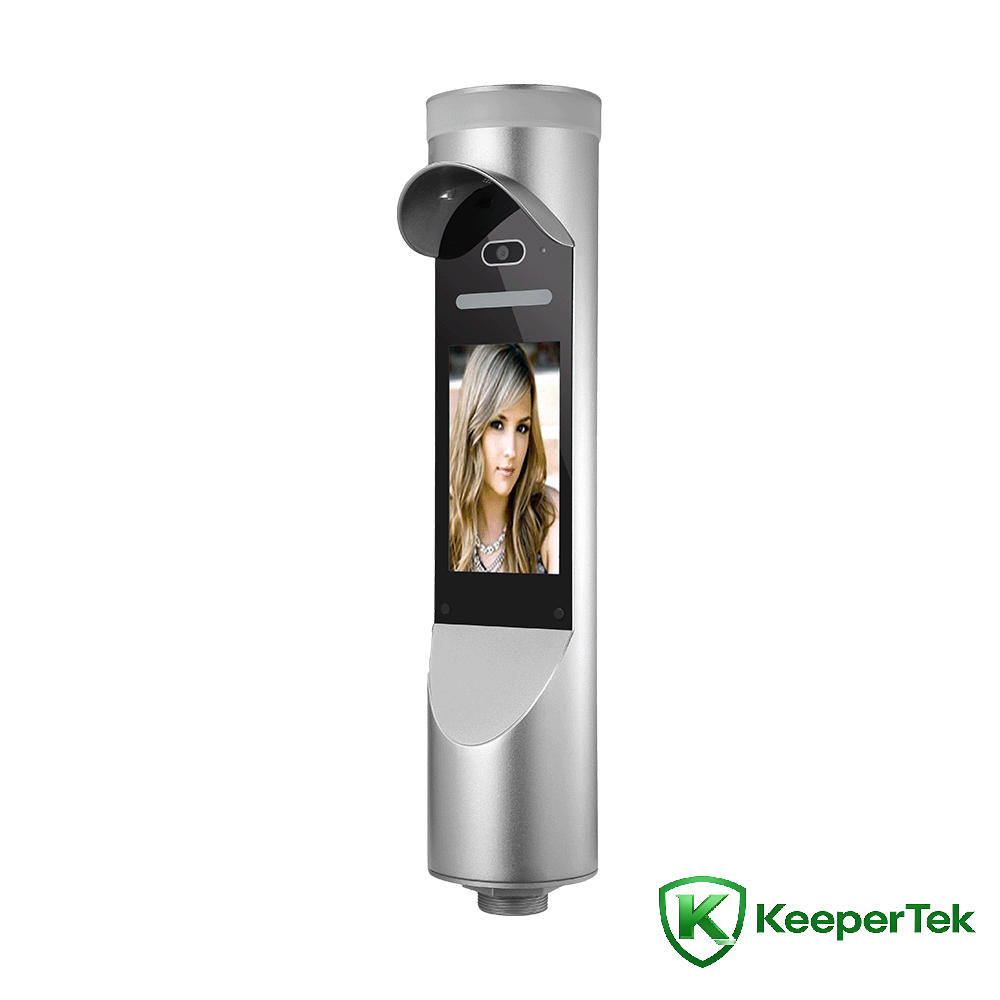

7umuntu oyi-cylindrical Ubuso Umshini wokuqashelwa wonke-in-one I-KT- FR014

Imingcele yezobuchwepheshe

Iphrosesa: I-Dual-Core ARM Cortex-A7, @1.0GHz

Isistimu yokusebenza: Isistimu yokusebenza ye-Linux

Isitoreji: 8GB EMMC

Ikhamera: I-Binocular, amaphikseli asebenzayo angu-2.1 million, 1920*1080

Idivayisi yokuthwebula: 1/2.8" Progressive Scan CMOS

Ububanzi: 6mm

Isipikha: okuqukethwe okujwayelekile, kokudlala ngezwi kungenziwa ngendlela oyifisayo

Ubude bokubonwa: 1.2 ~ 2.2 amamitha, i-engeli iyalungiseka

Ibanga lokubonwa: 0.3~1.5 amamitha, okuguquguqukayo kuye ngelensi

I-engeli yobuso: 30 degrees kwesokunxele nakwesokudla, 30 degrees phezulu naphansi

Isikhathi sokuqaphela: ngaphansi kwamasekhondi angu-0.5

Umthamo wobuso: 20,000

Umthamo wesitoreji: 60,000 amarekhodi wezifinyezo

Isixhumi esibonakalayo sokuxhumana: Imbobo ye-Ethernet eguquguqukayo ye-RJ45 (ingasekela i-WiFi eyenziwe ngokwezifiso)

Isixhumi esibonakalayo sokulawula: ukushintsha okukhiphayo

Isixhumi esibonakalayo se-Wiegand: Okokufaka kwe-interface ye-Wiegand oku-1, okukhiphayo oku-1 kwe-Wiegand

Isixhumi esibonakalayo se-USB: 1 isixhumi esibonakalayo se-USB njengedivayisi

Isixhumi esibonakalayo sokuxhumana: I-interface yokuxhumana engu-1 RS485

Ikhamera: Ikhamera ye-Binocular, ukukhanya okubonakalayo, isekela ukutholwa komzimba ophilayo

Amaphikseli asebenzayo: amaphikseli asebenzayo ayizigidi ezi-2.1, 1920*1080

Ukukhanya okuncane: umbala 0.01Lux @F1.2 (ICR); okumnyama nokumhlophe 0.001Lux @F1.2 (ICR)

Isilinganiso sesignali-kuya-kumsindo: ≥50db (I-AGC IVALIWE)

Ukulungiswa kwesikrini: 480*800

Izinga lokushisa lokusebenza: -30 ℃ - +60℃

Umswakama osebenzayo: 0 ~ 90% umswakama ohlobene, akukho ukufingqa

Amandla esisetshenziswa: 10W (MAX)

Izinga lesifutho sikasawoti: Rp6 noma ngaphezulu

I-Antistatic: othintana naye ± 6KV, umoya ± 8KV

Ukunikezwa kwamandla: DC12V/2A

Ububanzi bembobo yesikulufa: 47mm

Izinga lokulwa nezibhelu: IK06

Izinga lokuvikela: IP65

Ukucaciswa kwesikrini: Isibonisi se-RGB esingu-7-inch high-definition

Usayizi wesisetshenziswa: 519 (ubude) * 118 (ububanzi) * 118 (ubukhulu) mm

Izici

Sekela ukutholwa komzimba bukhoma kwe-binocular

Isekela ukulandelwa kobuso nokuvezwa kwabantu abahamba ezindaweni ezikhanyayo ezingemuva

I-algorithm ehlukile yokuqaphela ubuso, ibona kahle ubuso, isikhathi sokubonwa kobuso singaphansi kwama-0.5s

I-CPU eyakhelwe ngaphakathi

Ngokusebenzisa uhlelo lokusebenza lwe-LINUX, uhlelo luzinzile

Isho isikhathi sokusebenza phakathi kokuhluleka kwe-MTBF＞50000h

Isekela imitapo yolwazi yokuqhathanisa yobuso engafika ku-20,000+ namarekhodi okuqashelwa angu-60,000

Izivumelwano zokusebenzisana ezinothile, ezisekela i-TCP/IP, i-UDP, i-RTP, i-RTSP, i-RTCP, i-HTTP, i-DNS, i-DDNS, i-DHCP, i-SMTP, i-UPNP, i-MQTT izivumelwano ngaphansi kwe-Windows/Linux nezinye izinkundla

Izinga lokushisa lokusebenza: -30℃-60℃

IP66 ingangeni manzi futhi ingangenisi uthuli

Sekela ukuzwela kokukhanya

Izixhumanisi zezingxenyekazi zekhompuyutha ezinothile (I/O, WG26, WG34, RJ45, USB, RS485)

7-intshi high-definition RGB display, akukho ukugcotshwa noma ukubambezeleka ezithombeni
