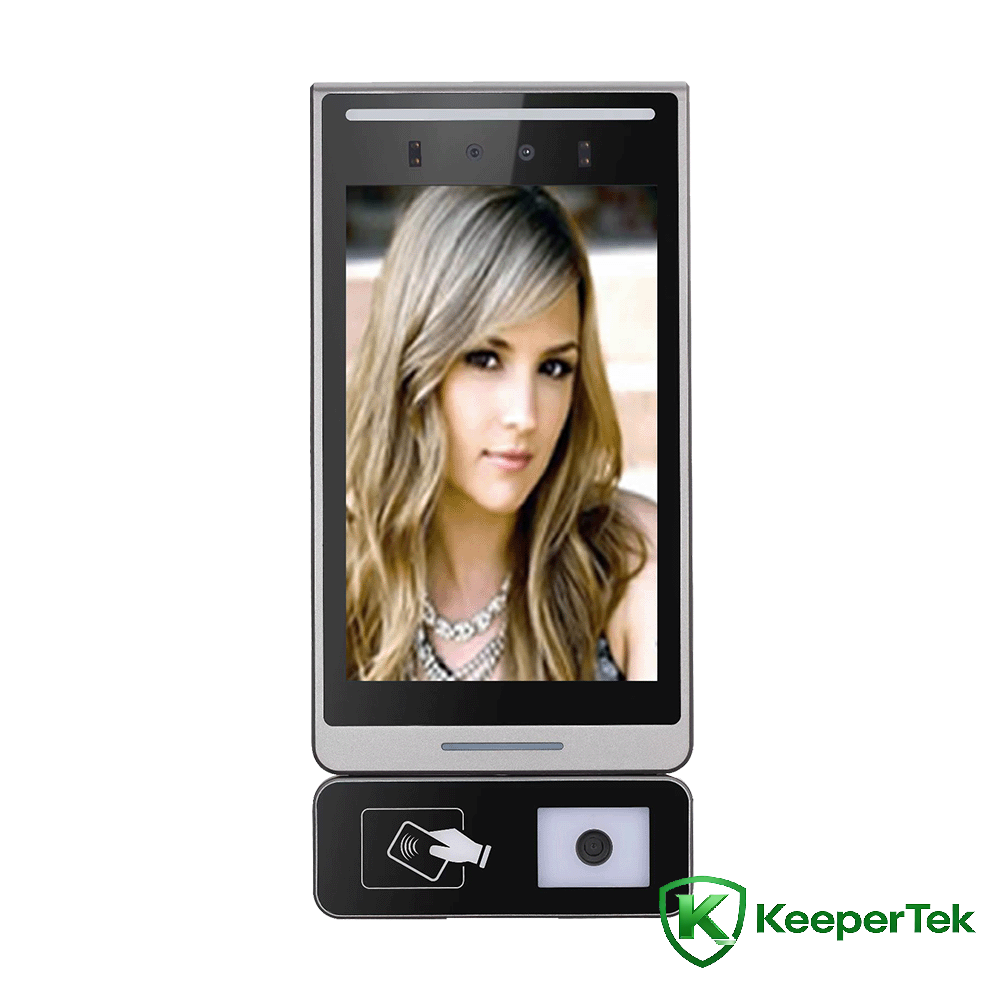

Umshini wokubona ubuso

8Umuntu oyintshi Ubuso khomba okubili-dimensional Umshini wokuswayipha ikhodi yonke-in-one I-KT- FR015

Imingcele yezobuchwepheshe

Iphrosesa: I-Dual-core ARM Cortex-A7 ne-RISC-V MCU

Isistimu yokusebenza: Isistimu yokusebenza ye-Linux

Isitoreji: 1GB RAM + 8GB eMMC

Ikhamera: I-Binocular, amaphikseli asebenzayo angu-2.1 million, 1920*1080

Idivayisi yokuthwebula: 1/2.8" Progressive Scan CMOS

Ilensi: 4.5mm ubude bokugxila

Imojula yokuswayipha ikhadi: i-mifare one (M1), S50, S70, NTAG2xx namanye amakhadi ebhendi yefrikhwensi engu-13.56MHz, i-TK, i-EM nolunye uchungechunge lwamakhadi ebhendi engu-125KHz (asekelwa i-IC/ID)

Imojuli yekhodi ye-QR: 640 (evundlile)

Isipikha: Okuqukethwe kokudlala ngezwi kungenziwa ngendlela oyifisayo

Ubude bokubonwa: 1.2 ~ 2.3 amamitha, i-engeli iyalungiseka

Ibanga lokubonwa: 0.5~1.5 amamitha, okuguquguqukayo kuye ngelensi

I-engeli yobuso: 30 degrees kwesokunxele nakwesokudla, 30 degrees phezulu naphansi

Isikhathi sokuqaphela: ngaphansi kwamasekhondi angu-0.3

Umthamo werekhodi lokuhlonza: 69000

Umthamo wobuso: 24000

Okokufaka kwamandla: DC12V/2A

Isixhumi esibonakalayo senethiwekhi: 1 RJ45 10M/100M imbobo ye-Ethernet eguquguqukayo

I-Wiegend interface: 1 Wiegand interface okukhiphayo, 1 Wiegand interface okokufaka

Ukushintsha inani: 1 ukushintsha inani okukhiphayo

Isixhumi esibonakalayo sokuxhumana: I-interface yokuxhumana engu-1 RS485

Isixhumi esibonakalayo se-USB: 1 isixhumi esibonakalayo se-USB

Ikhamera: ikhamera ye-binocular, ilensi eyenziwe ngokwezifiso, ukukhanya okubonakalayo kanye ne-infrared eseduze, isekela ukutholwa komzimba ophilayo

Amaphikseli asebenzayo: amaphikseli asebenzayo ayizigidi ezi-2.1, 1920*1080

Isilinganiso sesignali-kuya-kumsindo: ≥50db (I-AGC IVALIWE)

Ibanga elinamandla elibanzi: 120db, ukuchayeka kwe-ISP kwe-algorithm ingxenye yobuso

Umbhalo wekhodi wevidiyo: H.265 Umbhalo wekhodi wephrofayela Eyinhloko/H.264 BP/MP/HP umbhalo wekhodi/MJPEG

Izinga lokushisa lokusebenza: -20℃-60℃

Umswakama osebenzayo: 0 ~ 90% umswakama ohlobene, akukho ukufingqa

Amandla esisetshenziswa: 20W(MAX)

Izinga lesifutho sikasawoti: Izinga le-Rp6

I-ESD: othintana naye ± 6KV, umoya ± 8KV

Ukunikezwa kwamandla: DC12V/2A

Izinga lokuvikela: IP66

Ukucaciswa kwesikrini: 8-intshi high-definition yesikrini se-IPS, ukulungiswa okungu-1280*800

Usayizi wesisetshenziswa: 295.76 (ubude) * 140.2 (ububanzi) * 24 (ubukhulu) mm

Izici

Sekela ukutholwa komzimba bukhoma kwe-binocular

Isekela ukulandelwa kobuso nokuvezwa kwabantu abahamba ezindaweni ezikhanyayo ezingemuva

I-algorithm ehlukile yokuqaphela ubuso, ibona kahle ubuso, isikhathi sokubonwa kobuso singaphansi kwama-0.3s

I-CPU eyakhelwe ngaphakathi

Ngokusebenzisa uhlelo lokusebenza lwe-LINUX, uhlelo luzinzile

Isho isikhathi sokusebenza phakathi kokuhluleka kwe-MTBF＞50000h

Isekela amalabhulali wokuqhathanisa ubuso afika kwangu-24,000 namarekhodi okuqashelwa angu-69,000

Izivumelwano zokusebenzisana ezinothile, ezisekela i-TCP/IP, i-UDP, i-RTP, i-RTSP, i-RTCP, i-HTTP, i-DNS, i-DDNS, i-DHCP, i-SMTP, i-UPNP, i-MQTT izivumelwano ngaphansi kwe-Windows/Linux nezinye izinkundla

Izinga lokushisa lokusebenza: -20℃-60℃

Umzimba ozacile kakhulu, umklamo omuhle wezimboni

Izixhumanisi zezingxenyekazi zekhompuyutha ezinothile (I/O, USB2.0, WG26, WG34, RJ45, RS485)

8-intshi IPS ebuka ngokugcwele isibonisi se-HD, akukho ukugcotshwa noma ukubambezeleka ezithombeni

Ukuzuza okuzenzakalelayo kanye nebhalansi emhlophe ezenzakalelayo kuvumela umbala wangempela wesithombe ukuthi ubuyiselwe ngokwemvelo

Ukunciphisa umsindo kwe-3D kanye nobuchwepheshe bokungena kwenkungu kwenza izithombe zokuqapha ngaphansi kokukhanya okuphansi zicace futhi zinemininingwane eyengeziwe

Sekela ukuvinjwa ingxenye yendawo yevidiyo

Sekela umbhalo wekhodi we-ROI

Ibhalansi emhlophe ezenzakalelayo, ibhalansi emhlophe eyenziwe ngesandla iyatholakala

Sekela ukuncishiswa komsindo kwe-2D nokuncishiswa komsindo kwe-3D

Isekela ukukhanya kwevidiyo, ukugqama, umbala, ukugcwaliswa kwesikhala, nokulungiswa kwe-gamma
