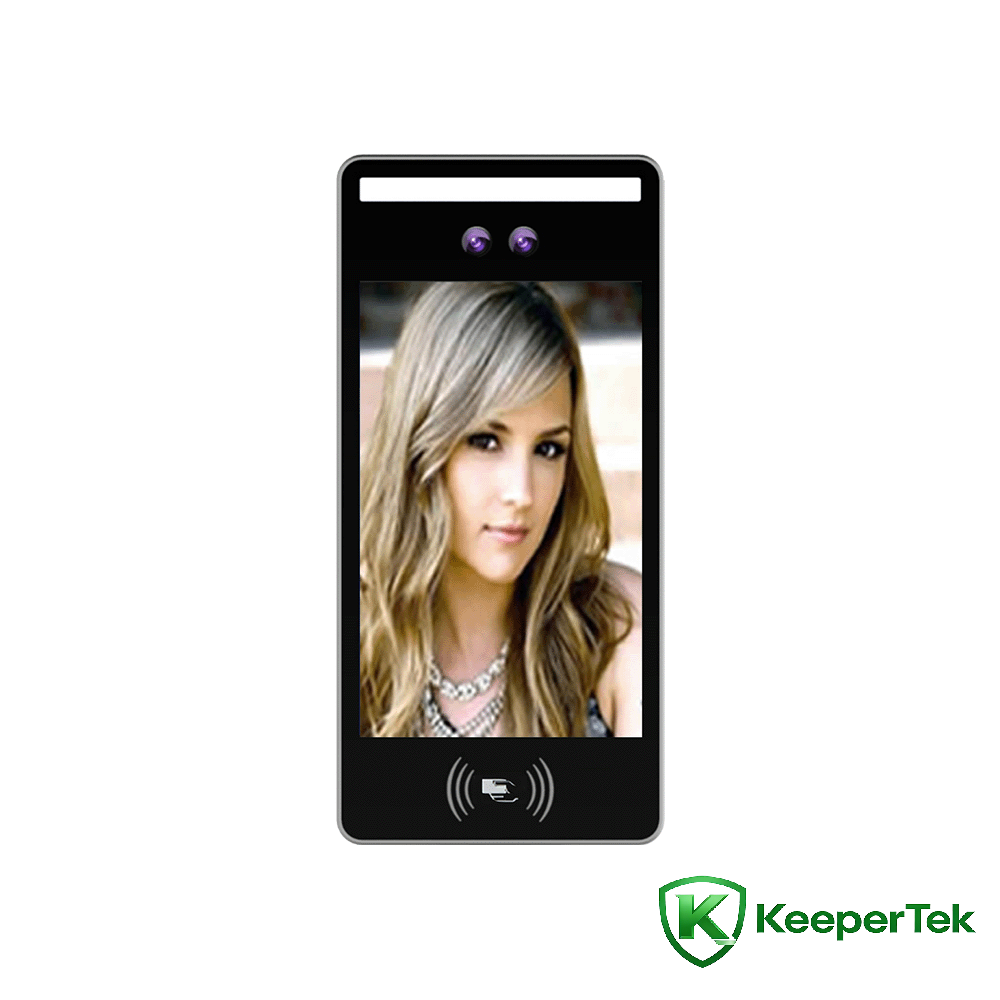

Umshini wokubona ubuso

8ubuso obuyintshi khomba Swayipha ikhadi Umshini wokuhlanganisa wonke I-KT- FR013

Imingcele yezobuchwepheshe

Iphrosesa: I-Dual-core ARM Cortex-A7

Isistimu yokusebenza: Isistimu yokusebenza ye-Linux

Isitoreji: Sekela isitoreji sekhadi le-TF

Ikhamera: I-Binocular, amaphikseli asebenzayo angu-2.1 million, 1920*1080

Idivayisi yokuthwebula: 1/2.8" Progressive Scan CMOS

Ububanzi: 6mm

Imojuli yokuswayipha ikhadi: uyazikhethela, isekela ukufunda amakhadi ohlobo A kanye nohlobo B wephrothokholi ye-ISO/IEC14443, isekela i-ID yekhadi le-ID kanye nekhodi yokuhlonza eyingqayizivele yekhadi le-ID

Isipikha: okuqukethwe okujwayelekile, kokudlala ngezwi kungenziwa ngendlela oyifisayo

Ubude bokubonwa: 1.2 ~ 2.2 amamitha, i-engeli iyalungiseka

Ibanga lokubonwa: 0.5~1.5 amamitha, okuguquguqukayo kuye ngelensi

I-engeli yobuso: 30 degrees kwesokunxele nakwesokudla, 30 degrees phezulu naphansi

Isikhathi sokuqaphela: ngaphansi kwamasekhondi angu-0.3

Umthamo wesitoreji: 80,000 amarekhodi wezifinyezo

Umthamo wobuso: 30,000

Izinhlobo zamakhadi ezingaswayipha: 13.56MHz, isekela i-Mifare S50, amakhadi e-S70, amakhadi e-ultralinght, amakhadi e-NTAG, i-DESFire D21, D41, D81, amakhadi we-CPU angaxhunywanga

Ukushintsha okukhiphayo: 1 ukushintsha okukhiphayo, amanye amachweba we-GPIO angenziwa ngezifiso

Isixhumi esibonakalayo se-USB: 1 isixhumi esibonakalayo se-USB njengedivayisi

Isixhumi esibonakalayo senethiwekhi: 1 RJ45 10M/100M imbobo ye-Ethernet eguquguqukayo, imbobo yenethiwekhi ye-Gigabit eyenziwe ngokwezifiso

I-Wiegend interface: 1 Wiegand interface okukhiphayo, 1 Wiegand interface okokufaka

Isixhumi esibonakalayo sokuxhumana: 1 RS485 interface

Ikhamera: Ikhamera ye-Binocular, ukukhanya okubonakalayo kanye ne-infrared eseduze, isekela ukutholwa komzimba ophilayo

Amaphikseli asebenzayo: amaphikseli asebenzayo ayizigidi ezi-2.1, 1920*1080

Ukukhanya okuncane: umbala 0.01Lux @F1.2 (ICR); okumnyama nokumhlophe 0.001Lux @F1.2 (ICR)

Isilinganiso sesignali-kuya-kumsindo: ≥50db (I-AGC IVALIWE)

Ibanga elinamandla elibanzi: 120db, ukuchayeka kwe-ISP kwe-algorithm ingxenye yobuso

Umbhalo wekhodi wevidiyo: H.265 Umbhalo wekhodi wephrofayela Eyinhloko/H.264 BP/MP/HP umbhalo wekhodi/MJPEG

Izinga lokushisa lokusebenza: -30 ℃ - +60℃

Umswakama osebenzayo: 0 ~ 90% umswakama ohlobene, akukho ukufingqa

Amandla esisetshenziswa: 20W(MAX)

Izinga lesifutho sikasawoti: Rp6 noma ngaphezulu

I-Antistatic: othintana naye ± 6KV, umoya ± 8KV

Ukunikezwa kwamandla: DC12V/2A

Izinga lokulwa nezibhelu: IK06

Izinga lokuvikela: IP66

Ukucaciswa kwesikrini: 8-intshi high-definition yesikrini se-IPS

Usayizi wesisetshenziswa: 265 (ubude) * 126 (ububanzi) * 26 (ubukhulu) mm

Izici

Sekela ukutholwa komzimba bukhoma kwe-binocular

Isekela ukulandelwa kobuso nokuvezwa kwabantu abahamba ezindaweni ezikhanyayo ezingemuva

I-algorithm ehlukile yokuqaphela ubuso, ibona kahle ubuso, isikhathi sokubonwa kobuso singaphansi kwama-0.3s

Ngokusebenzisa uhlelo lokusebenza lwe-LINUX, uhlelo luzinzile

Ukusakaza kwefomethi yombhalo wekhodi we-H.265 kuxhunywe ngokuqondile ku-NVR namanye amadivayisi esitoreji ngephrothokholi ye-ONVIF nephrothokholi ye-GB28181.

Isekela isitoreji sasendaweni ekhadini le-TF, ngokugcinwa okuqhubekayo kwezithombe unyaka ongu-1 namavidiyo enyanga engu-1 noma ngaphezulu (kuya ngomthamo wekhadi le-TF ozikhethela lona)

Isho isikhathi sokusebenza phakathi kokuhluleka kwe-MTBF＞50000h

Isekela imitapo yolwazi yokuqhathanisa yobuso engu-30,000+ namarekhodi okuqashelwa angu-80,000

Izivumelwano zokusebenzisana ezinothile, ezisekela i-TCP/IP, i-UDP, i-RTP, i-RTSP, i-RTCP, i-HTTP, i-DNS, i-DDNS, i-DHCP, i-SMTP, i-UPNP, i-MQTT izivumelwano ngaphansi kwe-Windows/Linux nezinye izinkundla

Izinga lokushisa lokusebenza: -30℃-60℃

IP66 ingangeni manzi futhi ingangenisi uthuli

Sekela umsebenzi wokufunda ikhodi ye-QR

Izixhumanisi zezingxenyekazi zekhompuyutha ezinothile (I/O, WG26, WG34, RJ45, USB, RS485)

8-intshi IPS ebuka ngokugcwele isibonisi se-HD, akukho ukugcotshwa noma ukubambezeleka ezithombeni

Ukuzuza okuzenzakalelayo kanye nebhalansi emhlophe ezenzakalelayo kuvumela umbala wangempela wesithombe ukuthi ubuyiselwe ngokwemvelo

Inzwa yeleveli yokukhanya emnyama eyakhelwe ngaphakathi enikezelwe ukubhekwa kwevidiyo, ukubonwa kokukhanya okuphansi okunembe kakhudlwana

Ukunciphisa umsindo kwe-3D kanye nobuchwepheshe bokungena kwenkungu kwenza izithombe zokuqapha ngaphansi kokukhanya okuphansi zicace futhi zinemininingwane eyengeziwe

Sekela ukuvinjwa ingxenye yendawo yevidiyo

Sekela umbhalo wekhodi we-ROI

Ibhalansi emhlophe ezenzakalelayo, ibhalansi emhlophe eyenziwe ngesandla iyatholakala

Sekela ukuncishiswa komsindo kwe-2D nokuncishiswa komsindo kwe-3D

Isekela ukukhanya kwevidiyo, ukugqama, umbala, ukugcwaliswa kwesikhala, nokulungiswa kwe-gamma

Ukusekela ukusetha isikhathi esiphezulu sokuchayeka esizenzakalelayo

Isekela ukuchayeka kobuso obuhlakaniphile kanye nezilungiselelo zokuthuthukisa ezihlakaniphile zobuso
