Umshini wokubona ubuso

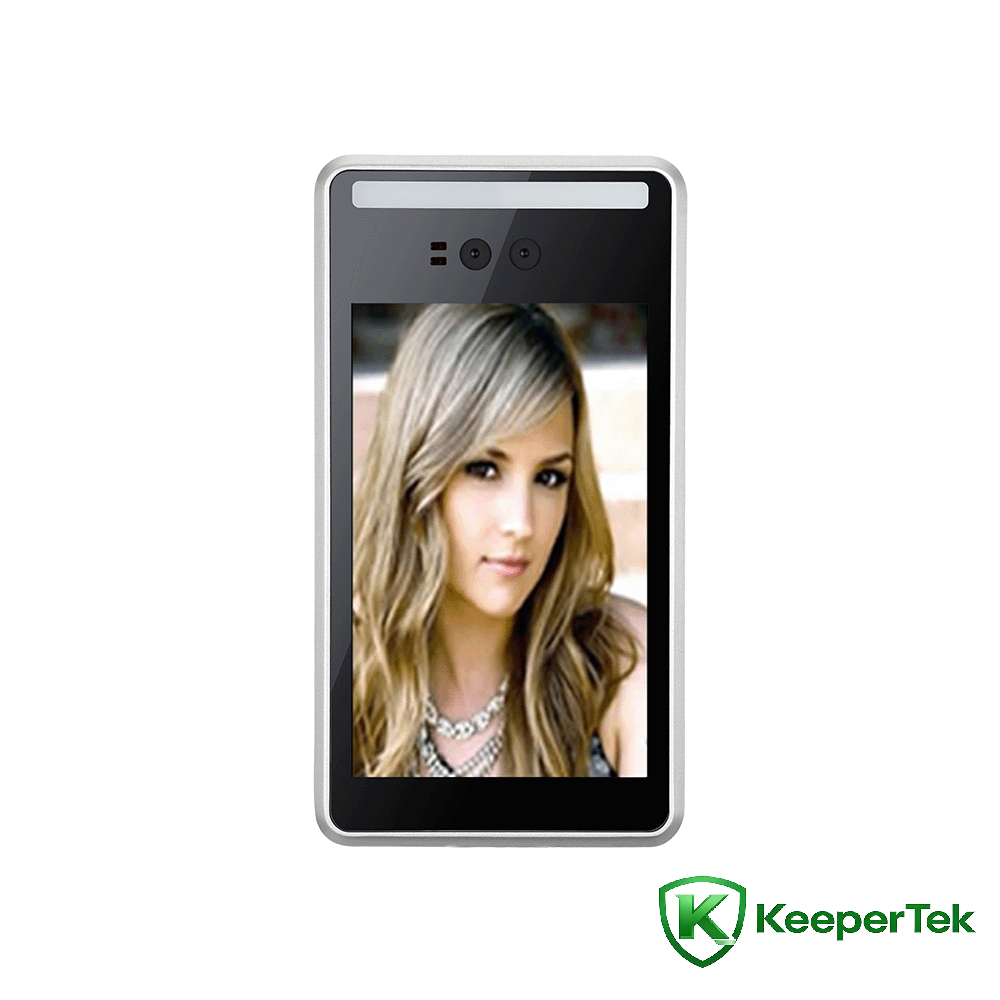

8ubuso obuyintshi Umshini wokuqashelwa wonke-in-one I-KT-FR012

Imingcele yezobuchwepheshe

Iphrosesa: I-Dual-core ARM Cortex-A7

Isistimu yokusebenza: Isistimu yokusebenza ye-Linux eshumekiwe

Isitoreji: 1GB RAM + 8GB eMMC

I-engeli yokubuka: I-engeli yokubuka emile: 30°； I-engeli yokubuka evundlile: 30°

Idivayisi yokuthwebula: 1/2.8" Progressive Scan CMOS

Ububanzi: 6mm

Imojuli yokuswayipha ikhadi (uma uthanda): 13.56MHz, isekela i-Mifare S50, amakhadi e-S70, amakhadi e-ultralinght, amakhadi e-NTAG, i-DESFire D21, i-D41, i-D81, amakhadi we-CPU angaxhunywanga

Imojula ye-4G (uyazikhethela): isekela i-LTE-FDD, i-LTE-TDD, i-DC-HSPA+, i-WCDMA, i-EDGE, i-GPRS namanye amazinga enethiwekhi, enezinga eliphezulu lokuxhumanisa i-160Mbps kanye nesilinganiso esiphezulu se-uplink esingu-60Mbps

Imojuli ye-Wifi (ongakukhetha): 2.4GHz ibhendi yefrikhwensi, iphrothokholi ye-IEEE802 b/g/n； Ibhendi yefrikhwensi engu-5GHz, iphrothokholi ye-IEEE802 a/n/ac

Isipikha: okuqukethwe okujwayelekile, kokudlala ngezwi kungenziwa ngendlela oyifisayo

Ubude bokubonwa: 1.2 ~ 2.2 amamitha, i-engeli iyalungiseka

Ibanga lokubonwa: 0.5~1.5 amamitha, okuguquguqukayo kuye ngelensi

Isikhathi sokuqaphela: ngaphansi kwamasekhondi angu-0.3

Umthamo wokuqopha: 80,000 amarekhodi wezifinyezo

Umthamo wobuso: 30,000

Ukukhanya kwesikrini: ≥400 cd/m2

Isixhumi esibonakalayo senethiwekhi: 1 RJ45 10M/100M imbobo ye-Ethernet eguquguqukayo, imbobo yenethiwekhi ye-Gigabit eyenziwe ngokwezifiso

I-Wiegend interface: 1 Wiegand interface okukhiphayo, 1 Wiegand interface okokufaka

Isixhumi esibonakalayo senzwa yomnyango: 1 isixhumi esibonakalayo senzwa yomnyango wesiteshi

Isixhumi esibonakalayo sokuvula umnyango: 1 indlela yokuvula umnyango

Isixhumi esibonakalayo sokukhiya umnyango: isixhumi esibonakalayo sokukhiya umnyango ongu-1

Isixhumi esibonakalayo sokuxhumana: isixhumi esibonakalayo sokuxhumana sesiteshi esingu-1 485

Ikhamera: Ikhamera ye-Binocular, ukukhanya okubonakalayo kanye ne-infrared eseduze, isekela ukutholwa komzimba ophilayo

Amaphikseli asebenzayo: amaphikseli asebenzayo ayizigidi ezi-2.1, 1920*1080

Ukukhanya okuncane: umbala 0.01Lux @F1.2 (ICR); okumnyama nokumhlophe 0.001Lux @F1.2 (ICR)

Isilinganiso sesignali-kuya-kumsindo: ≥50db (I-AGC IVALIWE)

Ibanga elinamandla elibanzi: 120db, ukuchayeka kwe-ISP kwe-algorithm ingxenye yobuso

Umbhalo wekhodi wevidiyo: H.265 Umbhalo wekhodi wephrofayela Eyinhloko/H.264 BP/MP/HP umbhalo wekhodi/MJPEG

Izinga lokushisa lokusebenza: -30 ℃ - +60℃

Umswakama osebenzayo: 0 ~ 90% umswakama ohlobene, akukho ukufingqa

Izinga lesifutho sikasawoti: Rp6 noma ngaphezulu

I-Antistatic: othintana naye ± 6KV, umoya ± 8KV

Ukunikezwa kwamandla: DC12V/2A

Izinga lokulwa nezibhelu: IK06

Izinga lokuvikela: IP66

Amandla esisetshenziswa: 20W(MAX)

Usayizi wesisetshenziswa: 252 (ubude) * 136 (ububanzi) * 26 (ubukhulu) mm

Izici

Sekela ukutholwa komzimba bukhoma kwe-binocular

I-algorithm ehlukile yokubona ubuso obubukhoma, ibona ngokunembile ubuso, isikhathi sokubonwa kobuso singaphansi kwama-0.3s

Isho isikhathi sokusebenza phakathi kokuhluleka kwe-MTBF＞50000H

Isekela ukulandelwa kobuso nokuvezwa kwabantu abahamba ezindaweni ezikhanyayo ezingemuva

Amaphrothokholi okusebenzelana anothile, asekela amaphrothokholi e-SDK ne-HTTP kumapulatifomu amaningi njenge-Linux/Windows

Ngokusebenzisa isistimu yokusebenza ye-Linux, ukuzinza kwesistimu kungcono

Isekela imitapo yolwazi yokuqhathanisa yobuso engu-30,000+ namarekhodi okuqashelwa angu-80,000

Isekela isitoreji sokunwetshwa kwekhadi le-TF, izithombe zingagcinwa ngokuqhubekayo unyaka ongu-1, amavidiyo angagcinwa ngokuqhubekayo isonto noma ngaphezulu

Izinga lokushisa lokusebenza: -30 ℃- +60℃

I-IP66 yangaphandle ingangeni manzi futhi ingangenisi uthuli

Idivayisi isekela ukungena ngemvume kwasendaweni ukuze uphathe, ubuze, futhi ulungiselele idivayisi.

Izixhumanisi zezingxenyekazi zekhompuyutha ezinothile (I/O, WG26, WG34, RJ45, inzwa yomnyango, ukuvulwa kwezicabha, ukhiye womnyango, RS485)

8-intshi IPS ebuka ngokugcwele isibonisi se-HD, akukho ukugcotshwa noma ukubambezeleka ezithombeni

Ukuzuza okuzenzakalelayo kanye nebhalansi emhlophe ezenzakalelayo kuvumela umbala wangempela wesithombe ukuthi ubuyiselwe ngokwemvelo

Inzwa yeleveli yokukhanya emnyama eyakhelwe ngaphakathi enikezelwe ukubhekwa kwevidiyo, ukubonwa kokukhanya okuphansi okunembe kakhudlwana

Ukunciphisa umsindo kwe-3D kanye nobuchwepheshe bokungena kwenkungu kwenza izithombe zokuqapha ngaphansi kokukhanya okuphansi zicace futhi zinemininingwane eyengeziwe

Sekela ukuvinjwa ingxenye yendawo yevidiyo

Sekela umbhalo wekhodi we-ROI

Ibhalansi emhlophe ezenzakalelayo, ibhalansi emhlophe eyenziwe ngesandla iyatholakala

Sekela ukuncishiswa komsindo kwe-2D nokuncishiswa komsindo kwe-3D

Isekela ukukhanya kwevidiyo, ukugqama, umbala, ukugcwaliswa kwesikhala, nokulungiswa kwe-gamma

Ukusekela ukusetha isikhathi esiphezulu sokuchayeka esizenzakalelayo

Isekela ukuchayeka kobuso obuhlakaniphile kanye nezilungiselelo zokuthuthukisa ezihlakaniphile zobuso
