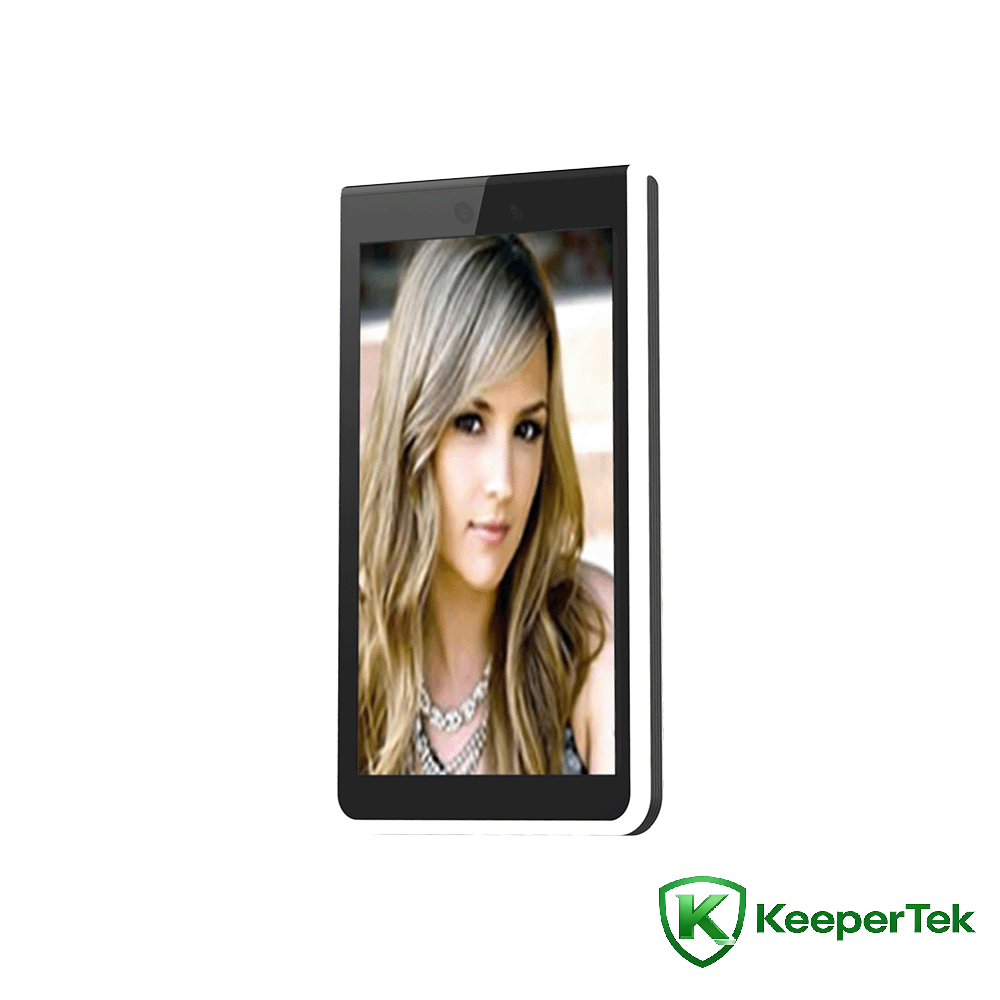

Umshini wokubona ubuso

8ubuso obuyintshi khomba shayela Ikhadi elizacile kakhulu umshini wokuhlanganisa yonke into I-KT- FR011

Imingcele yezobuchwepheshe

Iphrosesa: I-chip ye-YiZhi yasekhaya, i-dual-core processor + inkumbulo engu-1G + 16G EMMC

Isistimu yokusebenza: Isistimu yokusebenza ye-Linux

Isitoreji: Sekela isitoreji sekhadi le-TF (uma uthanda)

Ikhamera: I-Binocular, amaphikseli asebenzayo angu-2.1 million, 1920*1080

Idivayisi yokuthwebula: 1/2.8" Progressive Scan CMOS

Ilensi: 4.5mm ubude bokugxila

Imojuli ye-WiFi: 2.4GHz ibhendi yefrikhwensi, iphrothokholi ye-IEEE802 b/g/n； Ibhendi yefrikhwensi engu-5GHz, iphrothokholi ye-IEEE802 a/n/ac

Izinhlobo zamakhadi ezingaswayipha: i-mifare one (M1), S50, S70, NTAG2xx namanye amakhadi ebhendi yefrikhwensi engu-13.56MHz, i-TK, i-EM nolunye uchungechunge lwamakhadi ebhendi ye-125KHz (IC/ID iyasekelwa)

Isipikha: Okuqukethwe kokudlala ngezwi kungenziwa ngendlela oyifisayo

Ubude bokubonwa: 1.2 ~ 2.3 amamitha, i-engeli iyalungiseka

Ibanga lokuqashelwa: 0.5 ~ 2.5 amamitha

I-engeli yobuso: 30 degrees kwesokunxele nakwesokudla, 30 degrees phezulu naphansi

Isikhathi sokuqaphela: ngaphansi kwamasekhondi angu-0.3

Umthamo wesitoreji: 160,000 amarekhodi wezifinyezo

Umthamo wobuso: 24,000

Okokufaka kwamandla: DC12V/2A

Isixhumi esibonakalayo senethiwekhi: 1 RJ45 10M/100M imbobo ye-Ethernet eguquguqukayo, imbobo yenethiwekhi ye-Gigabit eyenziwe ngokwezifiso

I-Wiegend interface: 1 Wiegand interface okukhiphayo, 1 Wiegand interface okokufaka

Isixhumi esibonakalayo se-alamu: Indlela engu-1 yokufaka i-alamu yomlilo

Isixhumi esibonakalayo senzwa yomnyango: okokufaka kwenzwa yomnyango ongu-1

Isixhumi esibonakalayo sokuvula umnyango: okokufaka kokuvula umnyango ongu-1

Isixhumi esibonakalayo sensimbi yomnyango: 1 okukhipha isixhumi esibonakalayo sensimbi yomnyango

Isixhumi esibonakalayo sokukhiya umnyango: Isixhumi esibonakalayo sokukhiya isicabha esingu-1

Isixhumi esibonakalayo sokuxhumana: I-interface yokuxhumana engu-1 RS485

Isixhumi esibonakalayo se-USB: 1 isixhumi esibonakalayo se-USB

Ikhamera: Ikhamera ye-binocular, ilensi eyingilazi yonke, ukukhanya okubonakalayo kanye ne-infrared eseduze, isekela ukutholwa komzimba ophilayo

Amaphikseli asebenzayo: amaphikseli asebenzayo ayizigidi ezi-2.1, 1920*1080

Ukukhanya okuncane: umbala 0.01Lux @F1.2 (ICR); okumnyama nokumhlophe 0.001Lux @F1.2 (ICR)

Isilinganiso sesignali-kuya-kumsindo: ≥50db (I-AGC IVALIWE)

Ibanga elinamandla elibanzi: 120db, ukuchayeka kwe-ISP kwe-algorithm ingxenye yobuso

Umbhalo wekhodi wevidiyo: H.265 Umbhalo wekhodi wephrofayela Eyinhloko/H.264 BP/MP/HP umbhalo wekhodi/MJPEG

Izinga lokushisa lokusebenza: -20℃-55℃

Umswakama osebenzayo: 0 ~ 90% umswakama ohlobene, akukho ukufingqa

Amandla esisetshenziswa: 20W(MAX)

Izinga lesifutho sikasawoti: Rp6 noma ngaphezulu

I-Antistatic: othintana naye ± 6KV, umoya ± 8KV

Ukunikezwa kwamandla: DC12V/2A

Izinga lokuvikela: IP42

Ukucaciswa kwesikrini: 8-intshi high-definition yesikrini se-IPS

Usayizi wemishini: 215.22 * 130 * 18mm

Izici

Sekela ukutholwa komzimba bukhoma kwe-binocular

Isekela ukulandelwa kobuso nokuvezwa kwabantu abahamba ezindaweni ezikhanyayo ezingemuva

I-algorithm ehlukile yokuqaphela ubuso, ibona kahle ubuso, isikhathi sokubonwa kobuso singaphansi kwama-0.3s

I-CPU eyakhelwe ngaphakathi

Ngokusebenzisa uhlelo lokusebenza lwe-LINUX, uhlelo luzinzile

Ukusakaza kwefomethi yombhalo wekhodi we-H.265 kuxhunywe ngokuqondile ku-NVR namanye amadivayisi esitoreji ngephrothokholi ye-ONVIF nephrothokholi ye-GB28181.

Isekela isitoreji sasendaweni ekhadini le-TF, ngokugcinwa okuqhubekayo kwezithombe unyaka ongu-1 namavidiyo enyanga engu-1 noma ngaphezulu (kuya ngomthamo wekhadi le-TF ozikhethela lona)

Isho isikhathi sokusebenza phakathi kokuhluleka kwe-MTBF＞50000h

Isekela imitapo yolwazi yokuqhathanisa yobuso engu-24,000+ namarekhodi okuqashelwa angu-160,000

Izivumelwano zokusebenzisana ezinothile, ezisekela i-TCP/IP, i-UDP, i-RTP, i-RTSP, i-RTCP, i-HTTP, i-DNS, i-DDNS, i-DHCP, i-SMTP, i-UPNP, i-MQTT izivumelwano ngaphansi kwe-Windows/Linux nezinye izinkundla

Izinga lokushisa lokusebenza: -20℃-55℃

Sekela i-alamu ye-anti-tamper

Isekela i-intercom ye-docking yezwi nevidiyo yamafu

Sekela ukuphathwa kwesikrini sokuthinta ngaphambili kanye nokucushwa

Izixhumanisi zezingxenyekazi zekhompuyutha ezinothile (I/O, WG26, WG34, RJ45, USB, inzwa yomnyango, insimbi yokuncencethwa emnyango, ukuvulwa kwesicabha, i-alamu, i-RS485)

8-intshi IPS ebuka ngokugcwele isibonisi se-HD, akukho ukugcotshwa noma ukubambezeleka ezithombeni

Ukuzuza okuzenzakalelayo kanye nebhalansi emhlophe ezenzakalelayo kuvumela umbala wangempela wesithombe ukuthi ubuyiselwe ngokwemvelo

Inzwa yeleveli yokukhanya emnyama eyakhelwe ngaphakathi enikezelwe ukubhekwa kwevidiyo, ukubonwa kokukhanya okuphansi okunembe kakhudlwana

Ukunciphisa umsindo kwe-3D kanye nobuchwepheshe bokungena kwenkungu kwenza izithombe zokuqapha ngaphansi kokukhanya okuphansi zicace futhi zinemininingwane eyengeziwe

Isekela ukusakaza kwekhodi kanye nezilungiselelo zesikhawu se-I frame

Sekela ukuvinjwa ingxenye yendawo yevidiyo

Sekela umbhalo wekhodi we-ROI

Ibhalansi emhlophe ezenzakalelayo, ibhalansi emhlophe eyenziwe ngesandla iyatholakala

Sekela ukulungiselelwa kwesikhathi sokuchayeka esiphezulu

Sekela izilungiselelo zokuqapha umakhalekhukhwini

Sekela ukuncishiswa komsindo kwe-2D nokuncishiswa komsindo kwe-3D

Isekela isikhathi seshejuli yokurekhoda kanye nezilungiselelo zendlela yokulayisha

Isekela ukukhanya kwevidiyo, ukugqama, umbala, ukugcwaliswa kwesikhala, nokulungiswa kwe-gamma

Ukusekela ukusetha isikhathi esiphezulu sokuchayeka esizenzakalelayo

Isekela ukuchayeka kobuso obuhlakaniphile kanye nezilungiselelo zokuthuthukisa ezihlakaniphile zobuso
