Umshini wokubona ubuso

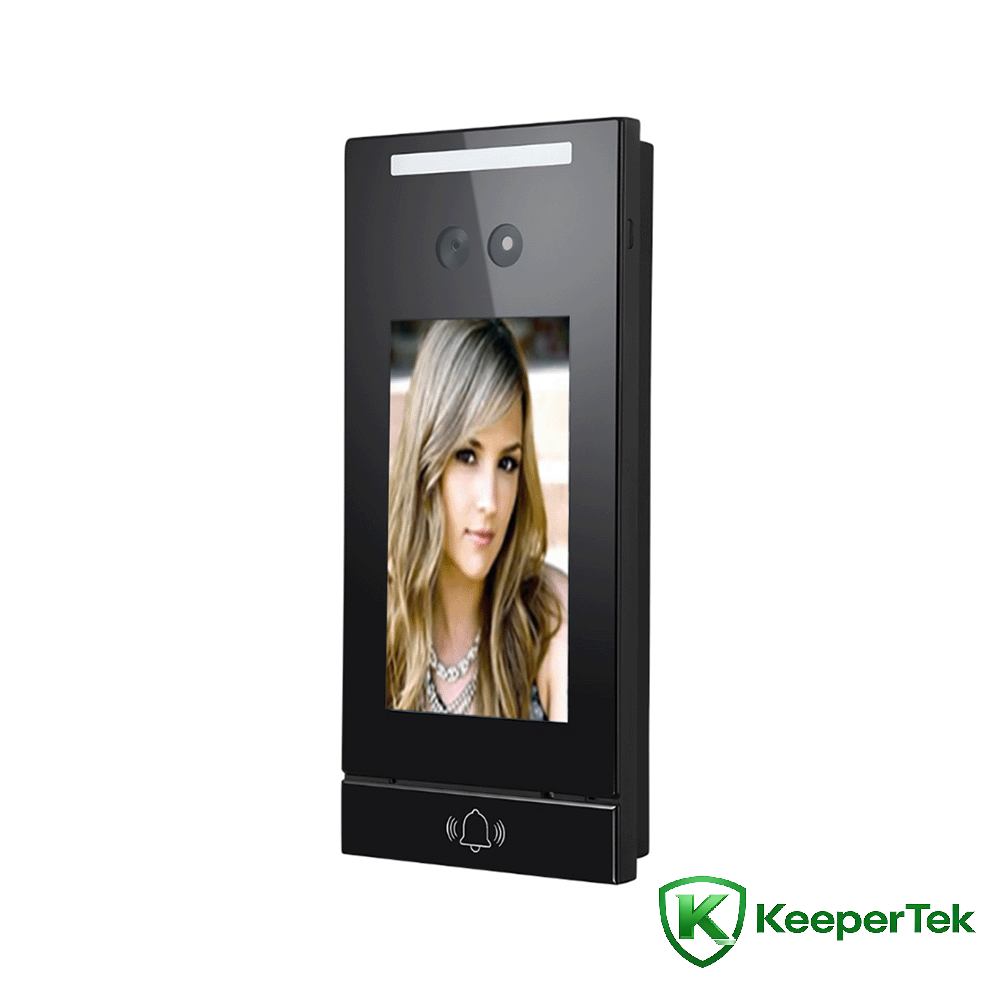

5intshi abantu Ubuso khomba shayela Ikhadi lihlanganisiwe umshini I-KT- FR004

Imingcele yezobuchwepheshe

iprosesa Iprosesa yasekhaya eyi-dual-core + inkumbulo engu-1G + 8G EMMC

isistimu esebenzayo Isistimu yokusebenza ye-Linux

isitoreji Sekela isitoreji sekhadi le-TF (uma uthanda)

Ikhamera I-Binocular, amaphikseli asebenzayo ayizigidi ezingu-2.1, 1920*1080

Idivayisi yokuthwebula 1/2.8" Ukuskena Okuqhubekayo kwe-CMOS

Swayipha imojuli yekhadi Isekela amazinga amaningi e-LTE-TDD/LTE-FDD/HSPA+/GSM/GPRS/EDGE, isekela izinga lokulanda elifika ku-150Mbps, kanye nezinga lokulayisha elingu-50Mbps

Imojula ye-Wifi Ongakukhetha, i-chip ye-WiFi SoC engu-2.4GHz, i-IEEE 802.11b/g/n baseband ehlanganisiwe nesekhethi ye-RF, isilinganiso esiphezulu esingu-72.2Mbit/s sesendlalelo esibonakalayo

isikhulumi Ukucushwa okujwayelekile, okuqukethwe kokudlala ngezwi kungenziwa ngendlela oyifisayo

Ubude bokuhlonza 1.2 ~ 2.3 amamitha, i-engeli iyalungiseka

ibanga lokuqashelwa 0.5 ~ 1.5 amamitha

i-engeli yobuso 30 degrees kwesokunxele nakwesokudla, 30 degrees phezulu naphansi

isikhathi sokuqashelwa Ngaphansi kwamasekhondi angu-0.5

umthamo wokugcina 80,000 amarekhodi wezifinyezo

umthamo wobuso 10,000 amaphepha

Izinhlobo zamakhadi ezingaswayipha I-13.56MHz, isekela i-Mifare S50, amakhadi e-S70, amakhadi e-ultralinght, amakhadi e-NTAG, i-DESFire D21, D41, D81, amakhadi we-CPU angaxhunywanga

Okokufaka kwamandla DC12V/2A

isixhumi esibonakalayo senethiwekhi 1 RJ45 10M/100M imbobo ye-Ethernet eguquguqukayo, imbobo yenethiwekhi ye-Gigabit eyenziwe ngokwezifiso

I-interface ye-Wiegand Okukhiphayo oku-1 kwe-Wiegand, okokufaka kwe-interface ye-Wiegand engu-1

Isixhumi esibonakalayo se-alamu Okokufaka kwe-alamu yomlilo oku-1, ukuphuma kwe-alamu oku-1

Isixhumi esibonakalayo senzwa yomnyango 1 okokufaka kwenzwa yomnyango wesiteshi

Vula isikhombimsebenzisi somnyango Okokufaka kokuvula umnyango ongu-1

isikhombimsebenzisi sensimbi yomnyango 1 okukhiphayo kwesixhumi esibonakalayo sensimbi yomnyango

isikhombikubona sokukhiya umnyango 1 okukhiphayo kwesixhumi esibonakalayo sokukhiya umnyango wesiteshi

Isixhumi esibonakalayo sokuxhumana 1 isiteshi RS485 ukuxhumana esibonakalayo

ikhamera Ikhamera ye-binocular, ilensi yengilazi yonke, ukukhanya okubonakalayo kanye ne-infrared eseduze, isekela ukutholwa komzimba ophilayo

Amaphikseli asebenzayo Amaphikseli asebenzayo angu-2.1 million, 1920*1080

ukukhanya okuncane Umbala 0.01Lux @F1.2 (ICR); okumnyama nokumhlophe 0.001Lux @F1.2 (ICR)

isignali-kuya-umsindo isilinganiso ≥50db(AGC OFF)

ububanzi obuguquguqukayo 120db, ukuchayeka kwe-ISP kwe-algorithm ingxenye yobuso

umbhalo wevidiyo H.265 Umbhalo wekhodi Wephrofayela Eyinhloko/H.264 BP/MP/HP umbhalo wekhodi/MJPEG

izinga lokushisa lokusebenza-20℃ - +60℃

Umswakama osebenzayo 0~90% umswakama ohlobene, akukho ukuminyana

Amandla wezisetshenziswa 15W(MAX)

Izinga lesifutho sikasawoti I-RP level 6 nangaphezulu

i-antistatic Xhumana no-±6KV, umoya ±8KV

inikezwe amandla yi DC12V/2A

Izinga lokuvikela IP42

Ukucaciswa kwesikrini 5-intshi high-definition yesikrini se-IPS

Usayizi wesisetshenziswa 205 (ubude) * 95 (ububanzi) * 24.5 (ubukhulu) mm

Izici

Sekela ukutholwa komzimba bukhoma kwe-binocular

Isekela ukulandelwa kobuso nokuvezwa kwabantu abahamba ezindaweni ezikhanyayo ezingemuva

I-algorithm ehlukile yokuqaphela ubuso, ibona kahle ubuso, isikhathi sokubonwa kobuso singaphansi kwama-0.5s

I-CPU eyakhelwe ngaphakathi

Ngokusebenzisa uhlelo lokusebenza lwe-LINUX, uhlelo luzinzile

Ukusakaza kwefomethi yombhalo wekhodi we-H.265 kuxhunywe ngokuqondile ku-NVR namanye amadivayisi esitoreji ngephrothokholi ye-ONVIF nephrothokholi ye-GB28181.

Isekela isitoreji sasendaweni ekhadini le-TF, ngokugcinwa okuqhubekayo kwezithombe unyaka ongu-1 namavidiyo enyanga engu-1 noma ngaphezulu (kuya ngomthamo wekhadi le-TF ozikhethela lona)

Isho isikhathi sokusebenza phakathi kokuhluleka kwe-MTBF＞50000h

Isekela imitapo yolwazi yokuqhathanisa yobuso engu-10,000+ namarekhodi okuqashelwa angu-80,000

Izivumelwano zokusebenzisana ezinothile, ezisekela i-TCP/IP, i-UDP, i-RTP, i-RTSP, i-RTCP, i-HTTP, i-DNS, i-DDNS, i-DHCP, i-SMTP, i-UPNP, i-MQTT izivumelwano ngaphansi kwe-Windows/Linux nezinye izinkundla

Izinga lokushisa lokusebenza: -20 ℃- +60℃

I-IP42 yasendlini ingangeni futhi ingangenisi uthuli

Sekela i-alamu ye-anti-tamper

Isifundi sekhadi le-IC esakhelwe ngaphakathi

Isekela umsindo wokufakwayo kwemakrofoni nomsindo ophumayo wesipika

Izixhumanisi zezingxenyekazi zekhompuyutha ezinothile (I/O, WG26, WG34, RJ45, inzwa yomnyango, insimbi yokuncencethwa emnyango, ukuvulwa komnyango, i-alamu, RS485)

5-intshi IPS ebuka ngokugcwele isibonisi se-HD, akukho smear noma ukubambezeleka ezithombeni

Ukuzuza okuzenzakalelayo kanye nebhalansi emhlophe ezenzakalelayo kuvumela umbala wangempela wesithombe ukuthi ubuyiselwe ngokwemvelo

Inzwa yeleveli yokukhanya emnyama eyakhelwe ngaphakathi enikezelwe ukubhekwa kwevidiyo, ukubonwa kokukhanya okuphansi okunembe kakhudlwana

Ukunciphisa umsindo kwe-3D kanye nobuchwepheshe bokungena kwenkungu kwenza izithombe zokuqapha ngaphansi kokukhanya okuphansi zicace futhi zinemininingwane eyengeziwe

Isekela ukusakaza kwekhodi kanye nezilungiselelo zesikhawu se-I frame

Sekela ukuvinjwa ingxenye yendawo yevidiyo

Sekela umbhalo wekhodi we-ROI

Ibhalansi emhlophe ezenzakalelayo, ibhalansi emhlophe eyenziwe ngesandla iyatholakala

Sekela ukulungiselelwa kwesikhathi sokuchayeka esiphezulu

Sekela izilungiselelo zokuqapha umakhalekhukhwini

Sekela ukuncishiswa komsindo kwe-2D nokuncishiswa komsindo kwe-3D

Isekela isikhathi seshejuli yokurekhoda kanye nezilungiselelo zendlela yokulayisha

Isekela ukukhanya kwevidiyo, ukugqama, umbala, ukugcwaliswa kwesikhala, nokulungiswa kwe-gamma

Ukusekela ukusetha isikhathi esiphezulu sokuchayeka esizenzakalelayo

Isekela ukuchayeka kobuso obuhlakaniphile kanye nezilungiselelo zokuthuthukisa ezihlakaniphile zobuso
