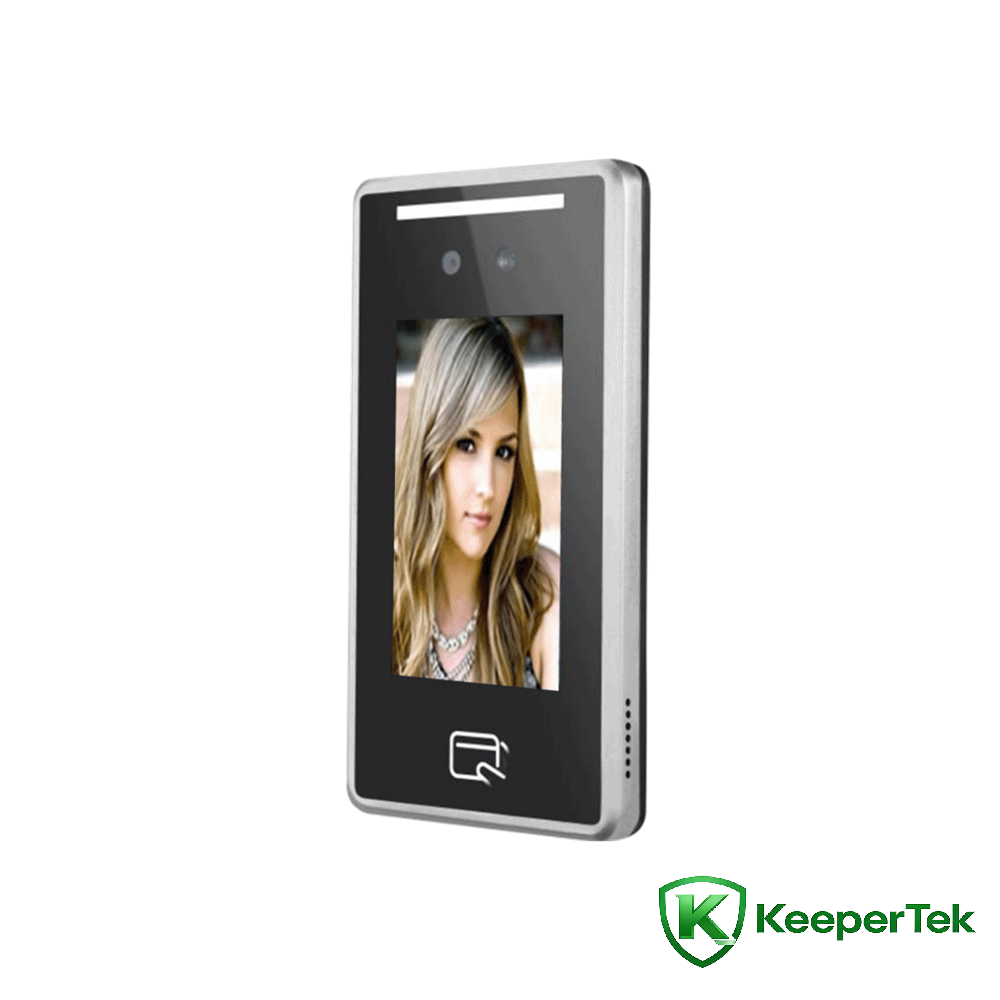

Umshini wokubona ubuso

4.3intshi abantu Ubuso khomba shayela Ikhadi lihlanganisiwe umshini I-KT- FR003

Imingcele yezobuchwepheshe

Iphrosesa: I-Dual-Core ARM Cortex-A7, @1.0GHz

Isitoreji: RAM: 256MB ROM: 8GB

Isistimu yokusebenza: Isistimu yokusebenza ye-Linux

Ilensi: 4.32mm ubude bokugxila

Imojula yokuswayipha ikhadi: 13.56MHz imojuli yokuswayipha ikhadi lemvamisa ephezulu, isekela i-ISO/IEC 14443 TypeA, isekela ukufundwa kwamakhadi e-IC

I-Ethernet: Imbobo ye-Ethernet engu-100M, ehambisana ne-IEEE802.3/802.3u ejwayelekile, isekela izivumelwano ze-IPV4 ne-IPV6

Imojula ye-Wifi: 2.4GHz ukuxhumana kwe-WiFi eyodwa-frequency, isekela iphrothokholi engu-802.11 b/g, isilinganiso esiphezulu esingu-54Mbps

Imojuli ye-Bluetooth: BT 4.2 Indlela yokushintshashintsha: DPSK, DQPSK, GFSK Izinga lokudlulisela: 1Mbps~3Mbps

Isikrini: Isikrini se-IPS LCD esingu-4.3-intshi

Thinta: Ukuthinta okunamandla

Isipikha: umsindo oshintshwayo, amandla angu-1W

Ibanga lokuqashelwa: 0.3 ~ 1.5 amamitha

I-engeli yobuso: 30 degrees kwesokunxele nakwesokudla, 30 degrees phezulu naphansi

Isikhathi sokuqaphela: ngaphansi kwamasekhondi angu-0.5

Umthamo wobuso: 1000

Umthamo wokuqopha: amarekhodi angama-70,000

Okokufaka kwamandla: DC12V/2A

Isixhumi esibonakalayo senethiwekhi: Imbobo ye-Ethernet engu-1 100M

I-Wiegend interface: 1 Wiegand okukhiphayo

Isixhumi esibonakalayo se-alamu: Okokufaka kwe-alamu yesiteshi esingu-1

Isixhumi esibonakalayo senzwa yomnyango: okokufaka kwenzwa yomnyango ongu-1

Isixhumi esibonakalayo sokuvula umnyango: okokufaka kokuvula umnyango ongu-1

Isixhumi esibonakalayo sokuxhumana: I-interface yokuxhumana engu-1 RS485

Isixhumi esibonakalayo se-USB: 1 USB2.0 isixhumi esibonakalayo sohlobo A

Ikhamera: Ikhamera ye-Binocular, ukukhanya okubonakalayo kanye ne-infrared eseduze, isekela ukutholwa komzimba ophilayo

Amaphikseli asebenzayo: amaphikseli asebenzayo ayizigidi ezi-2.1

Ukukhanya okuncane: umbala 0.01Lux @F1.2 (ICR); okumnyama nokumhlophe 0.001Lux @F1.2 (ICR)

Isilinganiso sesignali-kuya-kumsindo: ≥50db (I-AGC IVALIWE)

Ibanga elinamandla elibanzi: 100db, ukuchayeka kwe-ISP kwe-algorithm ingxenye yobuso

Izinga lokushisa lokusebenza: -10 ℃ kuya ku-+50℃

Umswakama osebenzayo: 10% ~ 90% umswakama ohlobene, akukho ukufingqa

Amandla esisetshenziswa: 10W (MAX)

I-ESD: othintana naye ± 4KV, umoya ± 6KV

Izinga lokuvikela: IP42

Ukunikezwa kwamandla: DC12V/2A

Usayizi womkhiqizo: 173.5*90.0*24.0 (mm)

Izici

Sekela ukutholwa komzimba bukhoma kwe-binocular

·Isekela ukulandelwa kobuso nokuvezwa kwabantu abahamba ezindaweni ezikhanyayo ezingemuva

·I-algorithm ehlukile yokuqaphela ubuso, ibona kahle ubuso, isikhathi sokubonwa kobuso singaphansi kwama-0.5s

·I-CPU eyakhelwe ngaphakathi

·Ngokusebenzisa uhlelo lokusebenza lwe-LINUX, uhlelo luzinzile

·Isho isikhathi sokusebenza phakathi kokuhluleka kwe-MTBF＞50000h

·Izinga lokushisa lokusebenza: -10 ℃- +50℃

·Sekela ukucushwa kwemishini engaphambili, ukubhaliswa kwabasebenzi, imibuzo yolwazi nokunye ukusebenza

·Izixhumanisi zezingxenyekazi zekhompuyutha ezinothile (i-USB2.0, okokufaka kwenzwa yomnyango, okokufaka kokuvula umnyango, okokufaka kwe-alamu, ukuphuma kwe-Wiegand, njll.)

·Isikrini sokuthinta esingu-4.3-inch capacitive, akukho smear yesithombe noma ukubambezeleka
