Umshini wokubona ubuso

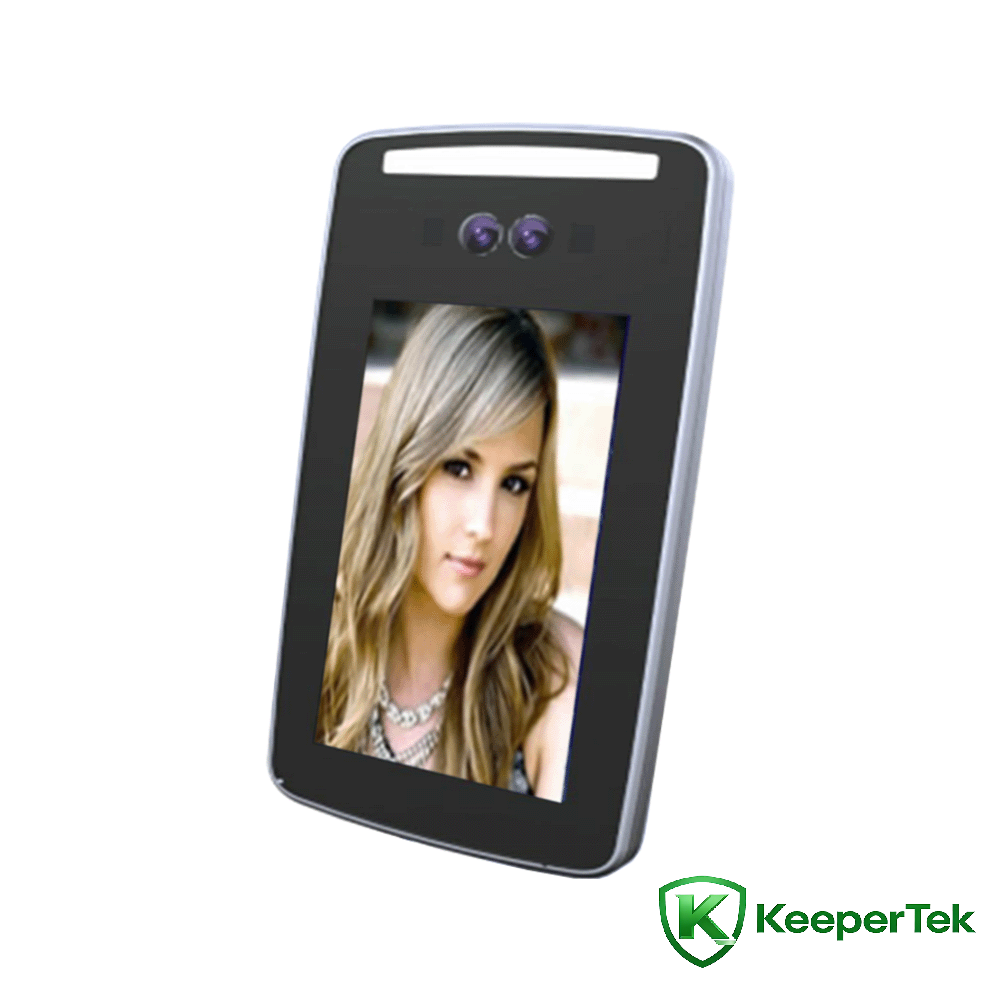

7intshi abantu Umshini wokubona ubuso wonke-kokukodwa I-KT-FR005

Imingcele yezobuchwepheshe

Iphrosesa: i-dual-core processor + 1G memory + 16G EMMC

Isistimu yokusebenza: Isistimu yokusebenza ye-Linux

Isitoreji: Sekela isitoreji sekhadi le-TF

Ikhamera: I-Binocular, amaphikseli asebenzayo angu-2.1 million, 1920*1080

Idivayisi yokuthwebula: 1/2.8" Progressive Scan CMOS

Ububanzi: 6mm

Isipikha: okuqukethwe okujwayelekile, kokudlala ngezwi kungenziwa ngendlela oyifisayo

Ubude bokubonwa: 1.2 ~ 2.2 amamitha, i-engeli iyalungiseka

Ibanga lokubonwa: 0.5~1.5 amamitha, okuguquguqukayo kuye ngelensi

I-engeli yobuso: 30 degrees kwesokunxele nakwesokudla, 30 degrees phezulu naphansi

Isikhathi sokuqaphela: ngaphansi kwamasekhondi angu-0.5

Umthamo wobuso: 20,000

Umthamo wesitoreji: 60,000 amarekhodi wezifinyezo

Ukushintsha okukhiphayo: 1 ukushintsha okukhiphayo, amanye amachweba we-GPIO angenziwa ngezifiso

Isixhumi esibonakalayo senethiwekhi: 1 RJ45 10M/100M imbobo ye-Ethernet eguquguqukayo, imbobo yenethiwekhi ye-Gigabit eyenziwe ngokwezifiso

Isixhumi esibonakalayo se-Wiegand: Okokufaka kwe-interface ye-Wiegand oku-1, okukhiphayo oku-1 kwe-Wiegand

Isixhumi esibonakalayo se-USB: 1 isixhumi esibonakalayo se-USB njengedivayisi

Isixhumi esibonakalayo sokuxhumana: 1 RS485 interface

Ikhamera: Ikhamera ye-Binocular, ukukhanya okubonakalayo kanye ne-infrared eseduze, isekela ukutholwa komzimba ophilayo

Amaphikseli asebenzayo: amaphikseli asebenzayo ayizigidi ezi-2.1, 1920*1080

Ukukhanya okuncane: umbala 0.01Lux @F1.2 (ICR); okumnyama nokumhlophe 0.001Lux @F1.2 (ICR)

Isilinganiso sesignali-kuya-kumsindo: ≥50db (I-AGC IVALIWE)

Ibanga elinamandla elibanzi: 100db, ukuchayeka kwe-ISP kwe-algorithm ingxenye yobuso

Umbhalo wekhodi wevidiyo: H.265 Umbhalo wekhodi wephrofayela Eyinhloko/H.264 BP/MP/HP umbhalo wekhodi/MJPEG

Ukucushwa kwekhasi lewebhu: kuyasekelwa

Ukuthuthukiswa kwesilawuli kude sedivayisi: kuyasekelwa

Indlela yokusebenzisa: isekela inethiwekhi yomphakathi nokusetshenziswa kwe-LAN

Izinga lokushisa lokusebenza: -30 ℃ - +60℃

Umswakama osebenzayo: 0 ~ 90% umswakama ohlobene, akukho ukufingqa

Izinga lesifutho sikasawoti: Rp6 noma ngaphezulu

I-Antistatic: othintana naye ± 6KV, umoya ± 8KV

Ukunikezwa kwamandla: DC12V/2A

Izinga lokulwa nezibhelu: IK06

Izinga lokuvikela: IP66

Amandla edivayisi: 14.4W(MAX)

Usayizi wesisetshenziswa: 128 (ububanzi) * 28 (ubukhulu) * 240 (ubude) mm

Izici

Sekela ukutholwa komzimba bukhoma kwe-binocular

Isekela ukulandelwa kobuso nokuvezwa kwabantu abahamba ezindaweni ezikhanyayo ezingemuva

I-algorithm ehlukile yokuqaphela ubuso, ibona kahle ubuso, isikhathi sokubonwa kobuso singaphansi kwama-0.5s

 I-CPU eyakhelwe ngaphakathi

Ngokusebenzisa uhlelo lokusebenza lwe-LINUX, uhlelo luzinzile

Isho isikhathi sokusebenza phakathi kokuhluleka kwe-MTBF＞50000h

Isekela imitapo yolwazi yokuqhathanisa ubuso engu-20,000 namarekhodi okuqashelwa angu-60,000

Izivumelwano zokusebenzelana ezinothile, ezisekela i-TCP/IP, i-UDP, i-HTTP, i-DNS, i-DHCP, izivumelwano ze-MQTT ngaphansi kwe-Windows/Linux nezinye izinkundla · Izinga lokushisa elisebenzayo: -30℃-60℃

IP66 ingangeni manzi futhi ingangenisi uthuli

 Inzwa eyakhelwe ngaphakathi ye-photosensitive, ilungisa ngokuzenzakalelayo ukuqina kokukhanya

Izixhumanisi zezingxenyekazi zekhompuyutha ezinothile (I/O, WG26, WG34, RJ45, RS485)

7-intshi IPS ebuka ngokugcwele isibonisi se-HD, akukho ukugcotshwa noma ukubambezeleka ezithombeni
