Umshini wokubona ubuso

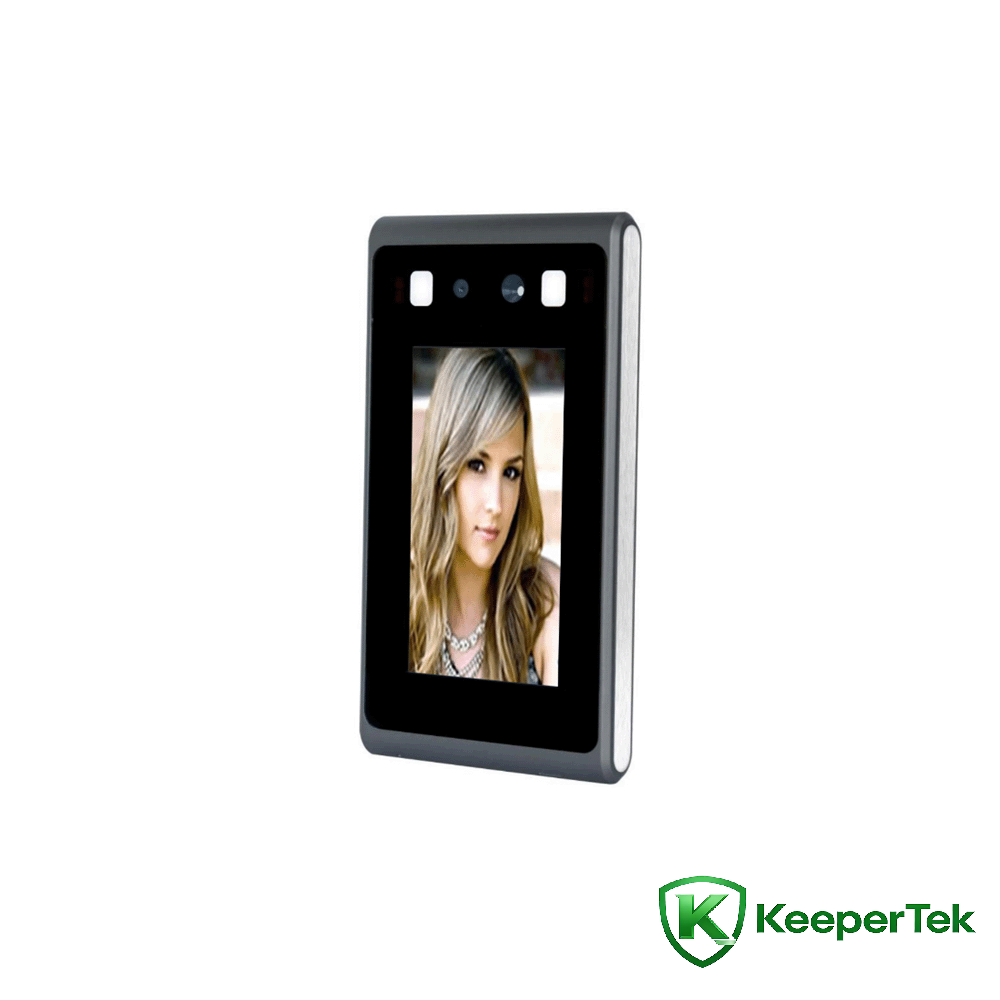

4.3intshi abantu Ubuso khomba shayela Ikhadi lihlanganisiwe umshini I-KT- FR002

Imingcele yezobuchwepheshe

Iphrosesa: I-Dual-Core ARM Cortex-A7, @1.0GHz

Isistimu yokusebenza: Isistimu yokusebenza ye-Linux

Isitoreji: Sekela isitoreji sekhadi le-TF (uma uthanda)

Ikhamera: I-Binocular, amaphikseli asebenzayo angu-2.1 million, 1920*1080

Idivayisi yokuthwebula: 1/2.8" Progressive Scan CMOS

Ilensi: 4.5mm

Imojuli yokuswayipha ikhadi: ozikhethela, 13.56MHz, inombolo ye-ID yekhadi le-ID, i-Mifare, i-NFC

Imojuli ye-Wifi: IEEE 802.11b/g/n ejwayelekile, isekela ibhendi yefrikhwensi engu-2.4GHz, ibanga lesivinini 1Mbps-150Mbps

Isikrini sokuthinta: ukusekela, isikrini sokuthinta okuningi esinamandla

Isipikha: okuqukethwe okujwayelekile, kokudlala ngezwi kungenziwa ngendlela oyifisayo

Ubude bokubonwa: 1.2 ~ 2.2 amamitha, i-engeli iyalungiseka

Ibanga lokuqashelwa: 0.3 ~ 1.5 amamitha

I-engeli yobuso: 30 degrees kwesokunxele nakwesokudla, 30 degrees phezulu naphansi

Isikhathi sokuqaphela: ngaphansi kwamasekhondi angu-0.5

Umthamo wesitoreji: 60,000 amarekhodi wezifinyezo

Umthamo wobuso: 20,000

Okokufaka kwamandla: DC12V/2A

Isixhumi esibonakalayo senethiwekhi: 1 RJ45 10M/100M imbobo ye-Ethernet eguquguqukayo

I-Wiegend interface: 1 Wiegand interface okukhiphayo, 1 Wiegand interface okokufaka

Isixhumi esibonakalayo se-alamu: okokufaka kwe-alamu yomlilo oku-1, ukuphuma kwe-alamu oku-1

Isixhumi esibonakalayo senzwa yomnyango: okokufaka kwenzwa yomnyango ongu-1

Isixhumi esibonakalayo sokuvula umnyango: okokufaka kokuvula umnyango ongu-1

Isixhumi esibonakalayo sensimbi yomnyango: 1 okukhipha isixhumi esibonakalayo sensimbi yomnyango

Isixhumi esibonakalayo sokukhiya umnyango: Isixhumi esibonakalayo sokukhiya isicabha esingu-1

Isixhumi esibonakalayo sokuxhumana: I-interface yokuxhumana engu-1 RS485

Ikhamera: Ikhamera ye-binocular, ilensi yengilazi yonke, ukukhanya okubonakalayo kanye ne-infrared eseduze, isekela ukutholwa komzimba ophilayo

Amaphikseli asebenzayo: amaphikseli asebenzayo ayizigidi ezi-2.1, 1920*1080

Ukukhanya okuncane: umbala 0.01Lux @F1.2 (ICR); okumnyama nokumhlophe 0.001Lux @F1.2 (ICR)

Isilinganiso sesignali-kuya-kumsindo: ≥50db (I-AGC IVALIWE)

Ukulungiswa kwesikrini: 480*272

Izinga lokushisa lokusebenza: -20 ℃ - +55℃

Umswakama osebenzayo: 0 ~ 90% umswakama ohlobene, akukho ukufingqa

Amandla esisetshenziswa: 10W (MAX)

Izinga lesifutho sikasawoti: Rp6 noma ngaphezulu

I-Antistatic: othintana naye ± 4KV, umoya ± 8KV

Ukunikezwa kwamandla: DC12V/2A

Izinga lokuvikela: IP42

Ukucaciswa kwesikrini: 4.3-inch capacitive multi-touch screen

Usayizi wesisetshenziswa: 160 (ubude) * 88 (ububanzi) * 17 (ubukhulu) mm

Izici

Sekela ukutholwa komzimba bukhoma kwe-binocular

Isekela ukulandelwa kobuso nokuvezwa kwabantu abahamba ezindaweni ezikhanyayo ezingemuva

I-algorithm ehlukile yokuqaphela ubuso, ibona kahle ubuso, isikhathi sokubonwa kobuso singaphansi kwama-0.5s

I-CPU eyakhelwe ngaphakathi

Ngokusebenzisa uhlelo lokusebenza lwe-LINUX, uhlelo luzinzile

Isho isikhathi sokusebenza phakathi kokuhluleka kwe-MTBF＞50000h

Isekela imitapo yolwazi yokuqhathanisa yobuso engafika ku-20,000+ namarekhodi okuqashelwa angu-60,000

Izinga lokushisa lokusebenza: -20℃-55℃

I-IP42 yasendlini ingangeni futhi ingangenisi uthuli

Sekela i-alamu ye-anti-tamper

Isekela umsindo wokufakwayo kwemakrofoni nomsindo ophumayo wesipika

Izixhumanisi zezingxenyekazi zekhompuyutha ezinothile (I/O, WG26, WG34, RJ45, inzwa yomnyango, insimbi yokuncencethwa emnyango, ukuvulwa komnyango, i-alamu, RS485)

4.3-intshi capacitive multi-touch screen, akukho smear isithombe noma ukubambezeleka
