Umshini wokubona ubuso

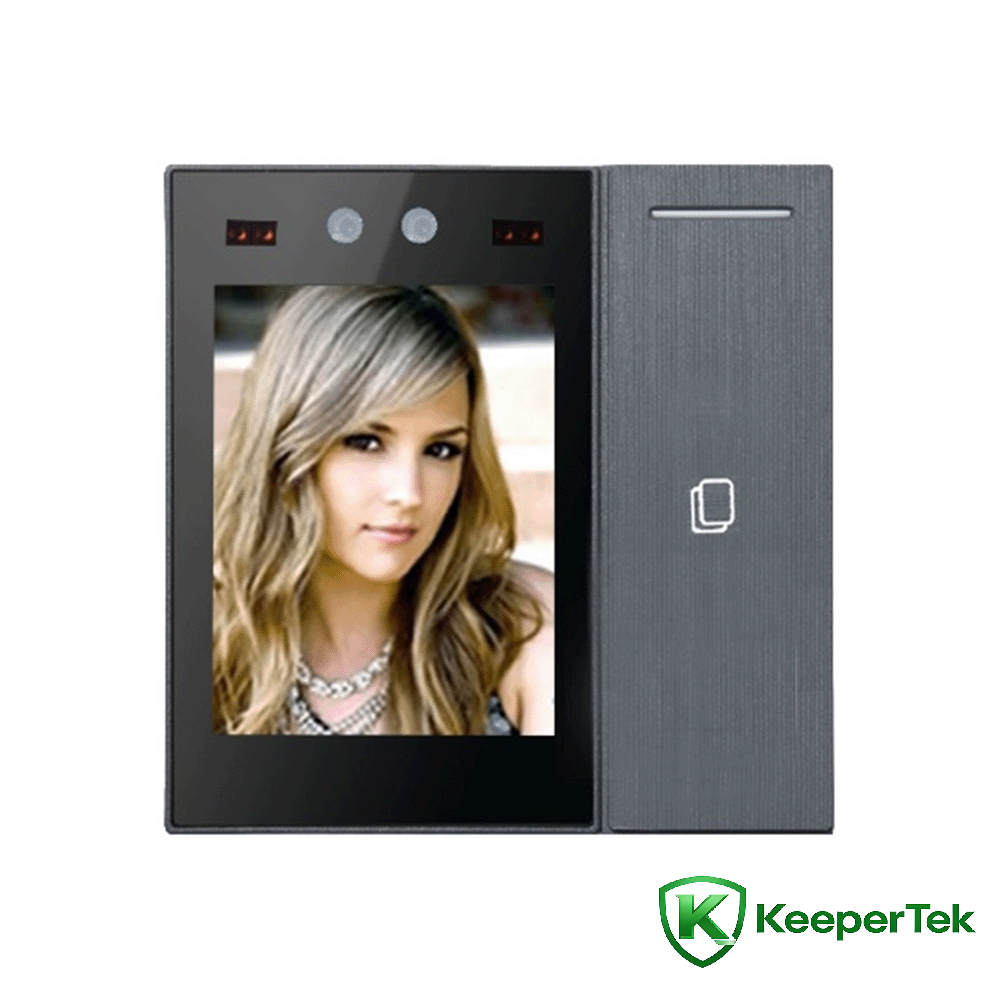

2.8Ikhadi lokuswayipha ubuso eliyiyintshi elilodwa umshini I-KT-FR001

Imingcele yezobuchwepheshe

Iphrosesa: Iphrosesa ye-ARM esebenza kahle kakhulu

Isistimu yokusebenza: Isistimu yokusebenza ye-Linux

Imojuli yokuswayipha ikhadi: 13.56MHz ukubonwa kwekhadi lebhendi yefrikhwensi, isekela i-ISO/IEC 14443 TypeA, isekela umsebenzi wokuqashelwa kwekhadi le-ID elingu-125KHz ozikhethela.

Imojuli ye-WiFi: 2.4GHz/5GHz WiFi SoC chip, i-IEEE 802.11a/b/g/n baseband ehlanganisiwe nesekhethi ye-RF, izinga eliphezulu lokuxhumanisa elingu-72.2Mbps

I-Ethernet: Imbobo ye-Ethernet engu-100Mbps

Isikrini: Isikrini se-LCD esingu-2.8-intshi

Thinta: Ukuthinta okunamandla

Ibanga lokuqashelwa: 0.3 ~ 1.5 amamitha

I-engeli yobuso: 30 degrees kwesokunxele nakwesokudla, 30 degrees phezulu naphansi

Isikhathi sokuqaphela: ngaphansi kwamasekhondi angu-0.5

Umthamo wobuso: 2000

Umthamo wokuqopha: 50000

Okokufaka kwamandla: DC12V/1A

Isixhumi esibonakalayo senethiwekhi: Imbobo ye-Ethernet engu-1 100M

I-Wiegend interface: 1 Wiegand okukhiphayo

Isixhumi esibonakalayo senzwa yomnyango: okokufaka kwenzwa yomnyango ongu-1

Isixhumi esibonakalayo sokuvula umnyango: okokufaka kokuvula umnyango ongu-1

I-Relay interface: 1 okukhiphayo kwe-relay

Isixhumi esibonakalayo se-USB: 1 USB2.0 isixhumi esibonakalayo (uhlobo-C)

Ikhamera: Ikhamera ye-Binocular, ukukhanya okubonakalayo kanye ne-infrared eseduze, isekela ukutholwa komzimba ophilayo

Amaphikseli asebenzayo: amaphikseli asebenzayo ayisigidi esingu-1

Isilinganiso sesignali-kuya-kumsindo: ≥50db (I-AGC IVALIWE)

Ibanga elinamandla elibanzi: 100db, ukuchayeka kwe-ISP kwe-algorithm ingxenye yobuso

Izinga lokushisa lokusebenza: -10 ℃ kuya ku-+50℃

Umswakama osebenzayo: 10% ~ 90% umswakama ohlobene, akukho ukufingqa

Amandla esisetshenziswa: 10W (MAX)

Izinga lokuvikela: IP42

Ukunikezwa kwamandla: DC12V/1A

Usayizi womkhiqizo: 86*86*17 (mm)

Izici

I-CPU eyakhelwe ngaphakathi

·Sekela ukutholwa komzimba bukhoma kwe-binocular

·Izinga lokushisa lokusebenza: -10 ℃- +50℃

·Ngokusebenzisa uhlelo lokusebenza lwe-LINUX, uhlelo luzinzile

·Isho isikhathi sokusebenza phakathi kokuhluleka kwe-MTBF＞50000h

·Sekela ukuxhumana kwenethiwekhi enezintambo nemisebenzi yokuxhumana ye-WiFi

·Idivayisi isekela ukubophezela ekulawuleni ukufinyelela okuhlakaniphile kanye nenkundla yokuphatha ukuba khona ngokuzenzakalelayo.

·Umsingathi unemojuli yokuswayipha ikhadi eyakhelwe ngaphakathi ukuze asekele ukunwetshwa kwemisebenzi yokuswayipha ikhadi le-ID.

·Idivayisi inezibani zokukhomba ezinemibala emithathu ezakhelwe ngaphakathi ukuze zaziswe ngokusekelwe emiphumeleni yokuqinisekisa.

·Isikrini sokuthinta esingu-2.8-inch capacitive, akukho smear yesithombe noma ukubambezeleka

·Idivayisi isekela isikrini esithintwayo esisekupheleni kanye nokungena kwasendaweni ukuze kuphathwe okungemuva, umbuzo, nokucushwa kwedivayisi.

·I-algorithm ehlukile yokuqaphela ubuso, ibona kahle ubuso, isikhathi sokubonwa kobuso singaphansi kwama-0.5s

·Umzimba wedivayisi uminyene futhi inhle, ifaneleka kahle ekungeneni nasekuphumeni kwezicelo zamahhovisi namagumbi amancane enkomfa.

·Izixhumanisi zezingxenyekazi zekhompuyutha ezinothile (i-USB2.0, i-relay, okokufaka kokuvula umnyango, okokufaka kwenzwa yomnyango, ukuphuma kwe-Wiegand, njll.)
