isango lokushwibeka

Isango lokushwiba eligodliwe I-KT-JSDB10

Imingcele yezobuchwepheshe

Ukwakhiwa kwesango: i-chassis, ukunyakaza, iphaneli yokulawula kanye nokunikezwa kwamandla

Indawo ephendukayo ye-turnstile: indlela eyodwa/indlela-mbili

Imodi ye-Movement drive: I-DC brushless motor

Isikhathi sokuvula isango: imizuzwana engu-0.5

Okokufaka kwamandla: I-AC220V±10%, 50Hz±4% iguqulelwa ngokuzenzakalelayo ibe yi-voltage yokusebenza kwesango DC24V, DC12V

Ukuxhumana okokufaka: isignali yokuxhumana eyomile, ileveli engu-12V noma isignali ye-pulse engu-12V enobubanzi be-pulse ≥100ms

Isixhumi esibonakalayo sokuxhumana: Rs485 (ibanga ≤1200 amamitha), i-TCP/IP (uma uthanda)

I-Baffle material: i-acrylic noma insimbi engagqwali

Inzwa ye-infrared: 4 amapheya ajwayelekile (ingangezwa)

Izinga lokushisa lokusebenza: -10 ℃ ~ 60 ℃, umswakama ohlobene 5% ~ 95%, akukho ukufingqa

Amadivayisi angaphandle angaxhumeka: Isifundi sekhadi le-IC, isifundi sekhadi le-ID, imojula yokuskena ikhodi, imojula yobuso, imojula yezigxivizo zeminwe. (Amadivayisi angaphandle adinga ukwenziwa ngezifiso)

Indawo yokusebenza: ngaphakathi, ngaphandle

Impilo yesevisi: izikhathi ezingaphezu kwezigidi ezi-3 zokuvula nokuvala okuqhubekayo

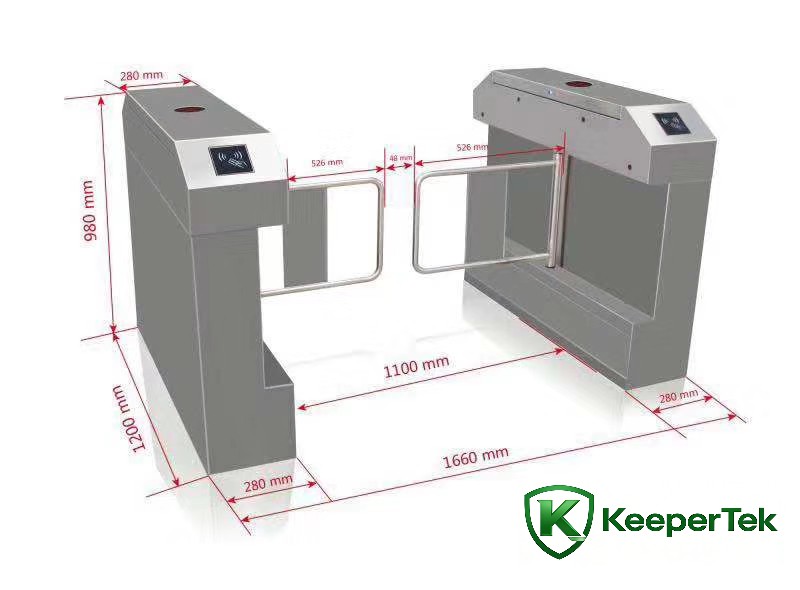

Usayizi weChassis: 1200*280*980MM
