Ikholomu yokuphakamisa izibhelu

Ikholomu yokuphakamisa indawo yokupaka KT-DX17

Imingcele yezobuchwepheshe

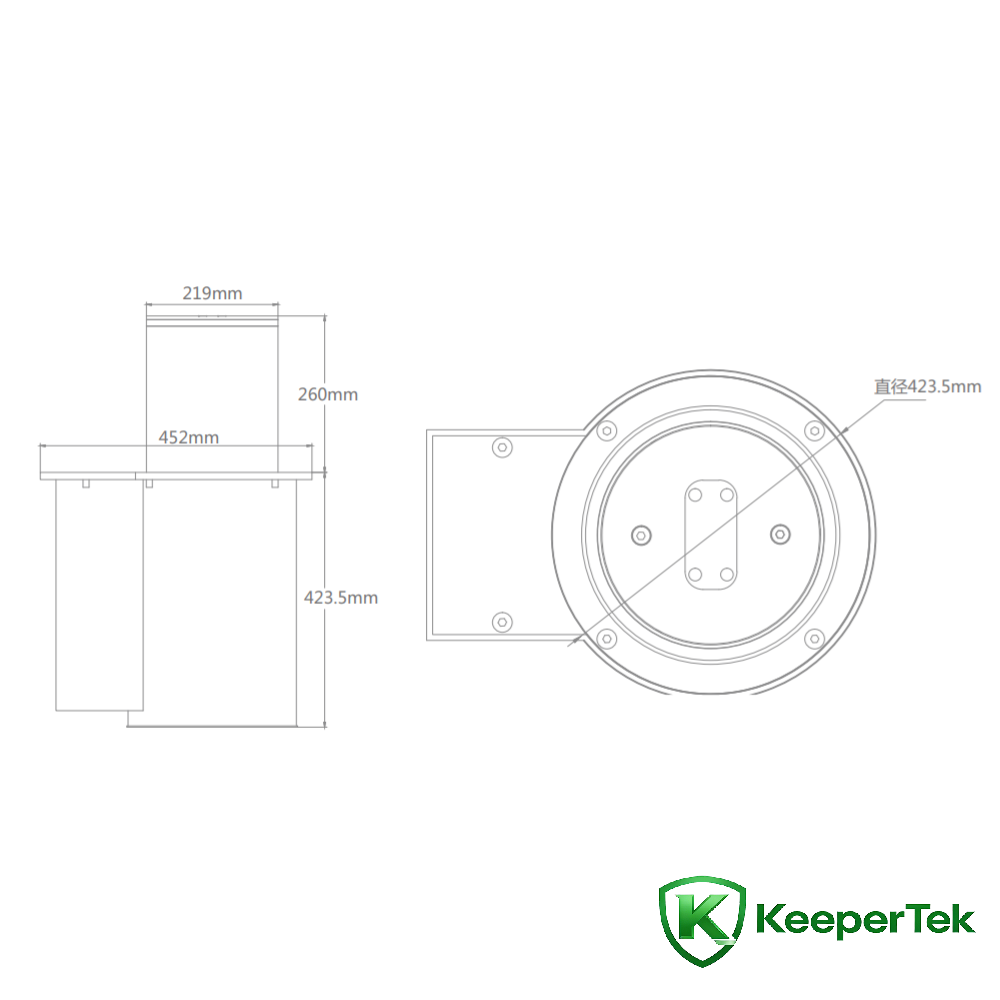

Ububanzi besilinda: 219mm

Ukuphakama kwesilinda: 0-260mm

Ubukhulu besilinda: 3-6mm

Impahla yesilinda: 304 insimbi engagqwali

Imininingwane yebhakede eshumekiwe: 452mm*332mm*423.5mm

Ibanga elingangeni manzi: IP68

Izinga lokushisa lokusebenza: -35℃～75℃

I-voltage esebenzayo: 24V

Uphawu lwesixwayiso: Isibani se-LED

Izici

Ungafaka ibha yokukhanya enamandla avuliwe, noma ungashiya ibha yokukhanya ingaxhumekile futhi ucime;

Ngokusebenzisa ifilimu ekhanyayo engu-5CM ebanzi, ukubukeka kungafinyelela ngaphezu kwama-90%;

I-flange yephaneli ingu-6mm ubukhulu; i-flange ephezulu yekholomu ingu-6mm ubukhulu;

Izinsika eziqinile zokulwa nokushayisana zinezindleko eziphansi zokwakha, azikwazi ukususwa, futhi ngokuvamile zifanelekile

Iphaseji elivaliwe liyisisetshenziswa esibalulekile sezindawo zokuhlala zodwa nezinye izindawo；

I-flange ephezulu ingenziwa ngokwezifiso ngokuthungwa, i-OEM, njll.；

Yamukela ukwenza ngokwezifiso okungajwayelekile
