Ikholomu yokuphakamisa izibhelu

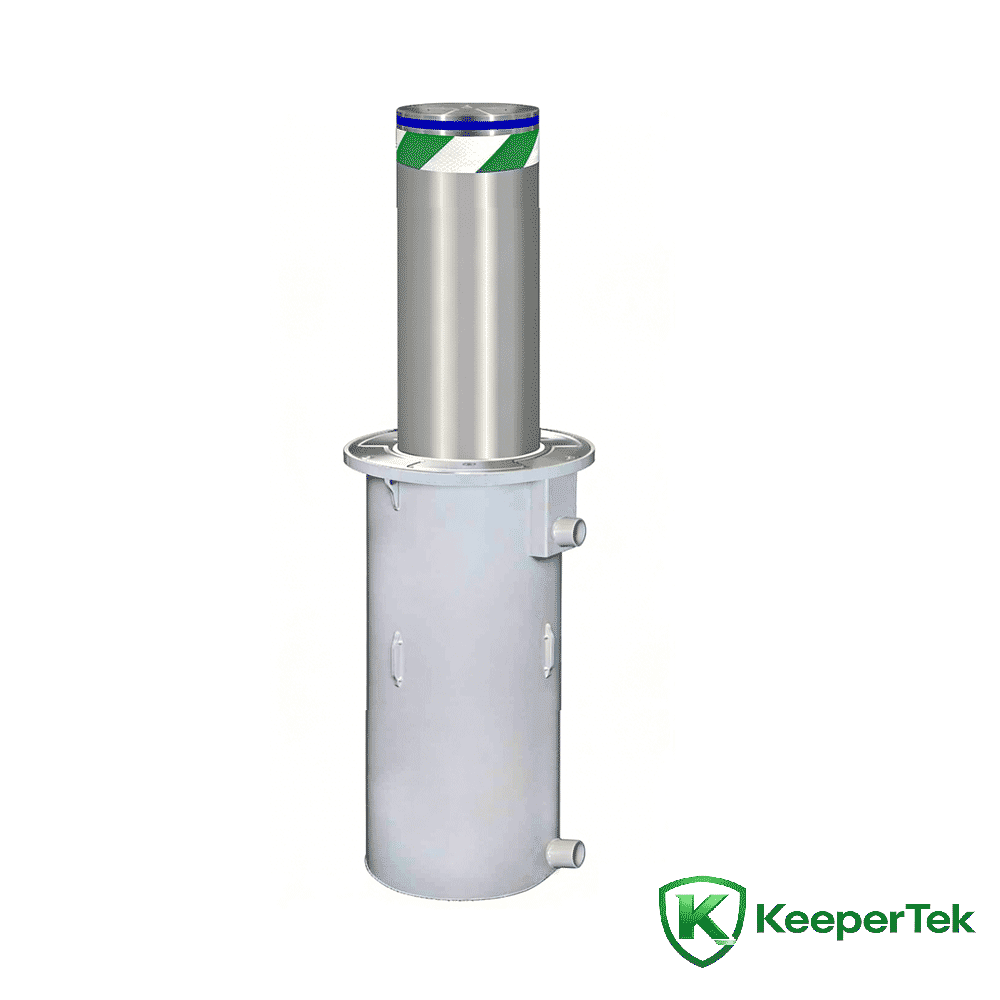

24V Ikholomu yokuphakamisa kagesi ephansi ene-voltage ephansi KT-DX08

Imingcele yezobuchwepheshe

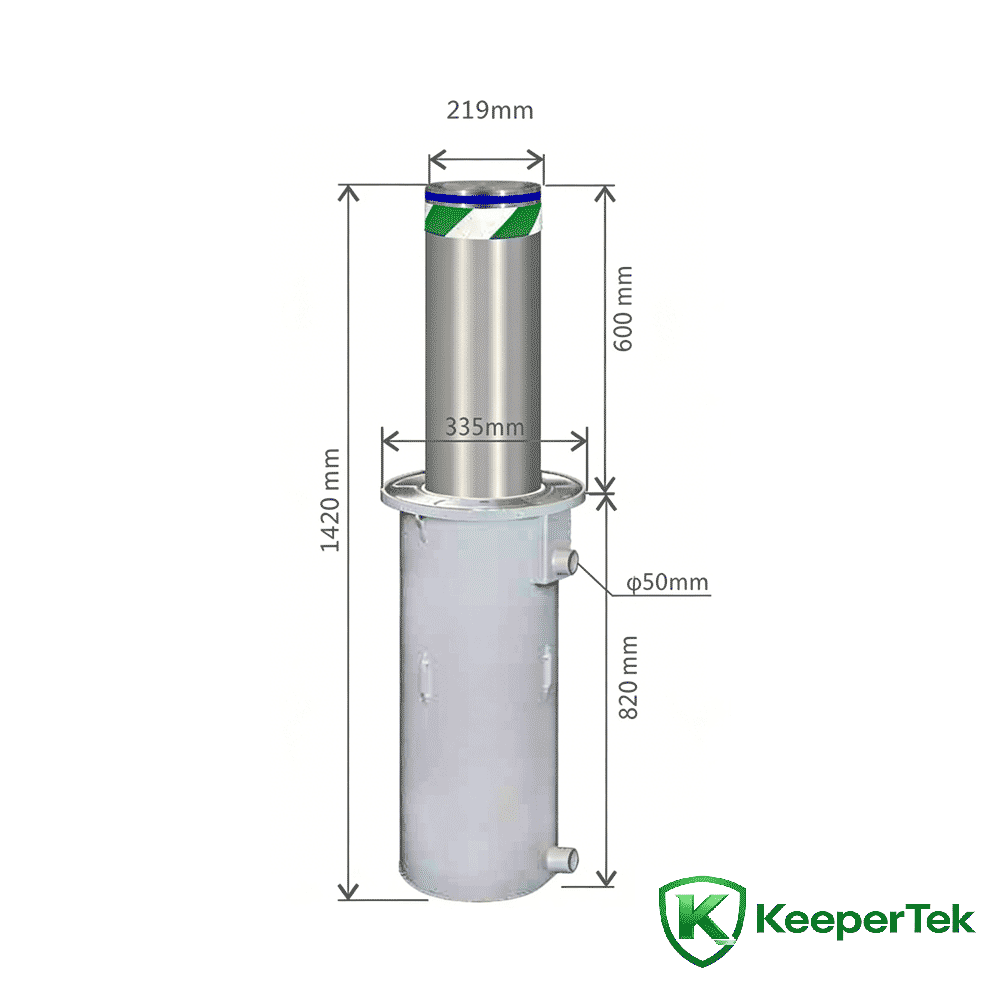

Ububanzi besilinda: 219mm

Ukuphakama kwesilinda: 600mm

Ubukhulu besilinda: 6mm

Impahla yesilinda: 304 insimbi engagqwali

Isivinini sokuphakamisa: 6S～13S

Imininingwane yebhakede eshumekiwe: ububanzi 395mm × ukujula 820mm

Ibanga elingangeni manzi: IP68

Izinga lokushisa lokusebenza: -35℃～75℃

Ukucaciswa kwe-Flange: 395mm × 10mm

Amandla kagesi: 24V

Amandla: 200W

Izimpawu eziyisixwayiso: ifilimu ekhanyayo yokukhanya okuphezulu kakhulu, izibani ze-LED

Umsebenzi wesimo esiphuthumayo: Ifakwe ugesi wezimo eziphuthumayo we-EPS kanye nokwehla kwenkinobho eyodwa

Imodi yokulawula: Ibhokisi lokulawula lingasetshenziselwa ukulawula okukodwa kuya kokukodwa/ukulawula isiteshi esinezintambo/isilawuli kude esingenantambo

Imisebenzi enwetshiwe: ukuqashelwa kwepuleti lelayisense/i-alamu yomlilo/ukuxhumana kwesistimu yokulawula ukufinyelela

Izici

I-DC 24V kagesi ehlanzekile, i-voltage ephephile;

Izintambo ezilula, umugqa owodwa kuphela wokulawula uyadingeka ebhokisini lokulawula kanye nesethi yamakholomu aphakamisayo, ukonga izindleko zocingo.；

Ingaxhunywa kugesi we-24VUPS ukulawula ukuphakanyiswa kwayo；

I-IP68 engangeni manzi, isengasetshenziswa ngokujwayelekile ngisho nangemva kokucwiliswa emanzini:

Isakhiwo esiqinile nesihlala isikhathi eside, umthamo omkhulu womthwalo；

Ngokusebenzisa ifilimu ekhanyayo engu-5CM ebanzi, ukubukeka kungafinyelela ngaphezu kwama-90%;

Ibha yokukhanya eyisixwayiso ye-LED yokukhanya okuphezulu okungakhethwa ingathuthukisa umphumela wokuxwayisa wasebusuku.

I-flange yephaneli yamukela ukwakheka kwephethini yokulwa nokushelela, futhi ukujiya kwe-flange kungakhethwa ngo-10mm/6mm;

Ugqinsi lwe-flange phezulu kwekholomu ngu-10mm/6mm;

Ukwenza ngokwezifiso okungajwayelekile kuyamukelwa. Ububanzi, ukujiya, ubude, ukubukeka, isivinini, njll. kwekholomu yokuphakamisa kungenziwa ngendlela oyifisayo.

Izinketho zokumisa

Ukuphakama: ukuphakama 400mm, ukuphakama 800mm, ukuphakama 1000mm, ukuphakama 1200mm, ukuphakama 1500mm

Ubukhulu: 8mm ukujiya, 10mm ukujiya, 12mm ukujiya, 16mm ukujiya, 20mm ukujiya

Ububanzi: 168mm ububanzi, 273mm ububanzi, 325mm ububanzi, abanye
