Ikholomu yokuphakamisa izibhelu

Ikholomu ephakamisayo egqitshwe ingxenye ekabili engashoni KT-DX05

Imingcele yezobuchwepheshe

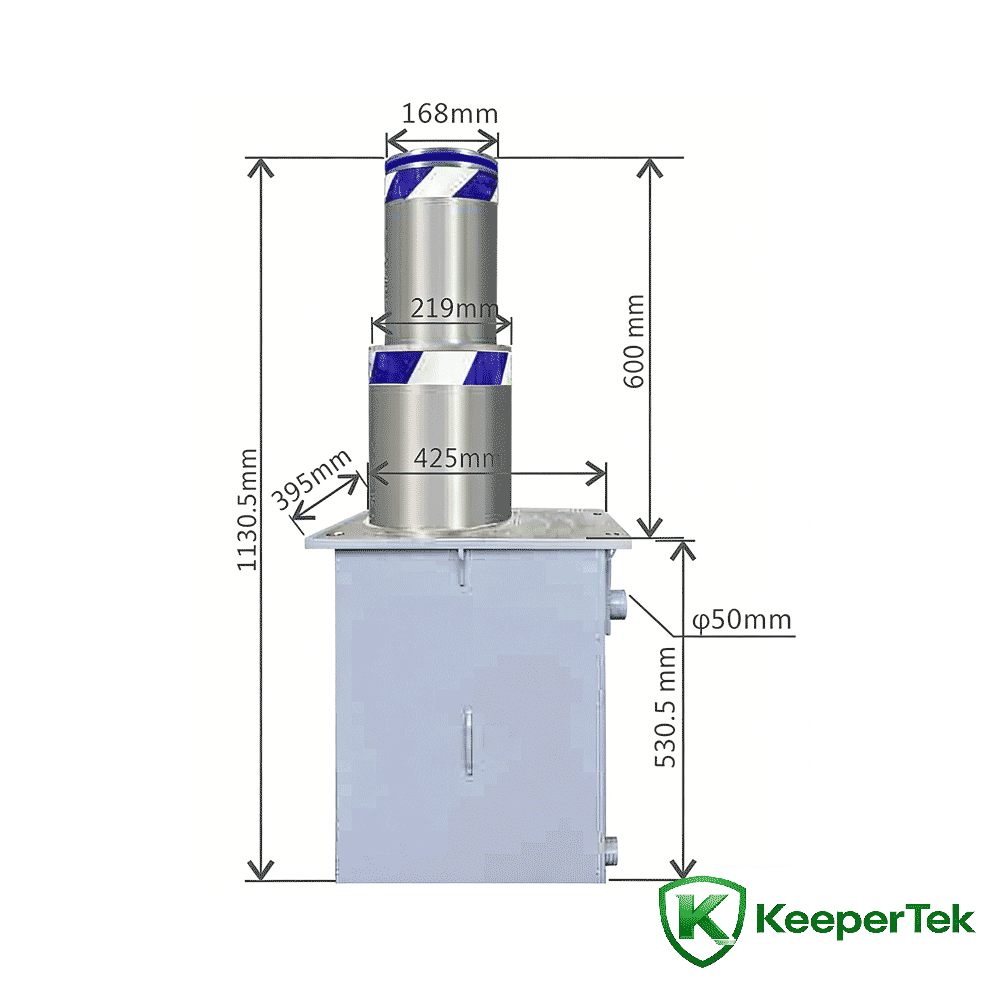

Ububanzi besilinda: 219mm+168mm

Ubude besilinda: 300+300mm

Ubukhulu besilinda: 6mm

Impahla yesilinda: 304 insimbi engagqwali

Isivinini sokuphakamisa: 2S～4S

Imininingwane yebhakede eshumekiwe: 425mmx395mmx530.5mm

Ibanga elingangeni manzi: IP68

Izinga lokushisa lokusebenza: -35℃～75℃

Ukucaciswa kwe-Flange: i-flange 425mmx395mmx ukujiya 8mm

Amandla kagesi: 220V

Amandla: 350W

Izimpawu eziyisixwayiso: ifilimu ekhanyayo yokukhanya okuphezulu kakhulu, izibani ze-LED

Umsebenzi wesimo esiphuthumayo: Ifakwe ugesi wezimo eziphuthumayo we-EPS kanye nokwehla kwenkinobho eyodwa

Indlela yokulawula: ibhokisi lokulawula/isilawuli kude esingenantambo

Ukuqashelwa kwepuleti lelayisensi yokusebenza okunwetshiwe/i-alamu yomlilo/ukuxhumana kwesistimu yokulawula ukufinyelela

Inani lokuthunyelwe komhlahlandlela: 4

Izici

Ingasetshenziswa ngokujwayelekile ngemuva kokushayiswa yimoto ethwele amathani ayi-8;

Ingasetshenziswa ngokujwayelekile ngemuva kokumelana nokudlula kwemoto engamathani ayi-100.；

I-IP68 engangeni manzi, isengasetshenziswa ngokujwayelekile ngisho nangemva kokucwiliswa emanzini:

Isakhiwo esiqinile nesihlala isikhathi eside, umthamo omkhulu wokuthwala umthwalo, ukunyakaza okushelelayo nezwi eliphansi；

Ngokusebenzisa isilawuli se-microcontroller, ukusebenza kwesistimu kuzinzile futhi kuthembekile, futhi kulula ukukuhlanganisa；

Ukuphakamisa kungalawulwa ngokuhambisana nezinye izinto zokusebenza ezifana nokubonwa kwepuleti lelayisense, amasango okuvimbela ukufinyelela, i-infrared, i-radar, inzwa yaphansi, amarobhothi, imizila ye-tidal, ama-alamu omlilo, njll.；

Esimeni lapho ugesi ucisha noma ungasebenzi kahle, uma ikholomu ephakamisayo idinga ukwehliswa lapho iphakanyiswa, ikholomu ingase yehliselwe ezingeni eliphansi ngokusebenzisa inkinobho esebhokisini lokulawula.；

Ngokusebenzisa ifilimu ekhanyayo engu-5CM ebanzi, ukubukeka kungafinyelela ngaphezu kwama-90%;

Ikholomu ephakamisayo ifakwe ibha yokukhanya eyisixwayiso ye-LED enokukhanya okuphezulu njengokujwayelekile, okuthuthukisa ngempumelelo umphumela wokuxwayisa ebusuku. Isistimu yebhokisi lokulawula inohlelo lokulawula ukukhanya kwesikhathi esiyisixwayiso olungasetha isikhathi sokukhanyisa.； Ukwamukela ubuchwepheshe be-hydraulic drive ehamba phambili emhlabeni jikelele, lonke uhlelo luphephe kakhulu, luthembekile futhi luzinzile. ； idivayisi yokulawula kude ； Ngokusebenzisa isilawuli kude esingenantambo, ukuphakanyiswa nokwehliswa kwezinqwaba zomgwaqo kungalawulwa phakathi kwebanga elingamamitha angama-30 ukuzungeza isilawuli (kuye ngokuthi imvelo yokuxhumana ngomsakazo esizeni). ；

I-flange yephaneli yamukela i-anti-slip pattern design, futhi ubukhulu be-flange bungakhethwa kusuka ku-10mm / 6mm; ubukhulu be-flange phezulu kwekholomu ngu-10mm/6mm;

Ukwenza ngokwezifiso okungajwayelekile kuyamukelwa. Ububanzi, ukujiya, ubude, ukubukeka, isivinini, njll. kwekholomu yokuphakamisa kungenziwa ngendlela oyifisayo.

Izinketho zokumisa

Ukuphakama: ukuphakama 400mm, ukuphakama 800mm, ukuphakama 1000mm, ukuphakama 1200mm, ukuphakama 1500mm

Ubukhulu: 8mm ukujiya, 10mm ukujiya, 12mm ukujiya, 16mm ukujiya, 20mm ukujiya

Ububanzi: 168+219mm, ububanzi 219+273mm, ububanzi 273+325mm, abanye
