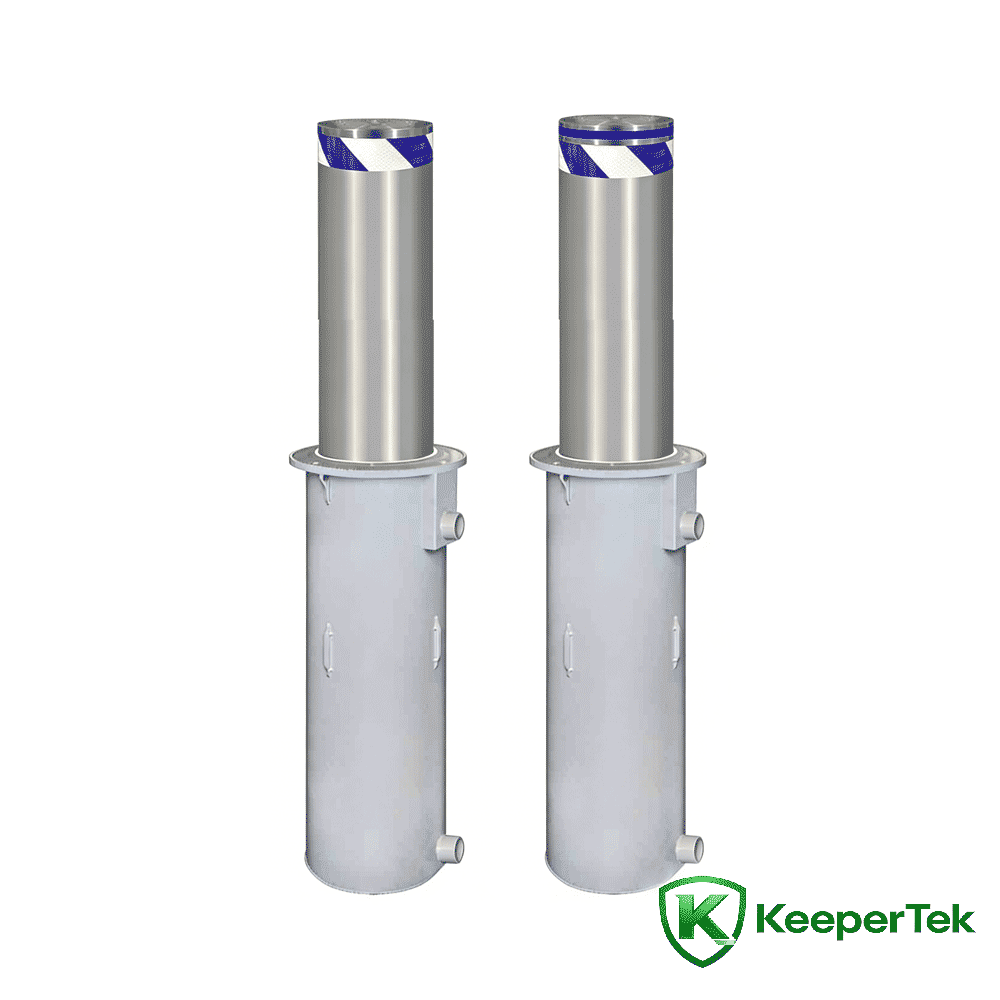

Ikholomu yokuphakamisa izibhelu

Ikholomu yokuphakamisa ezenzakalela kancane KT-DX03

Imingcele yezobuchwepheshe

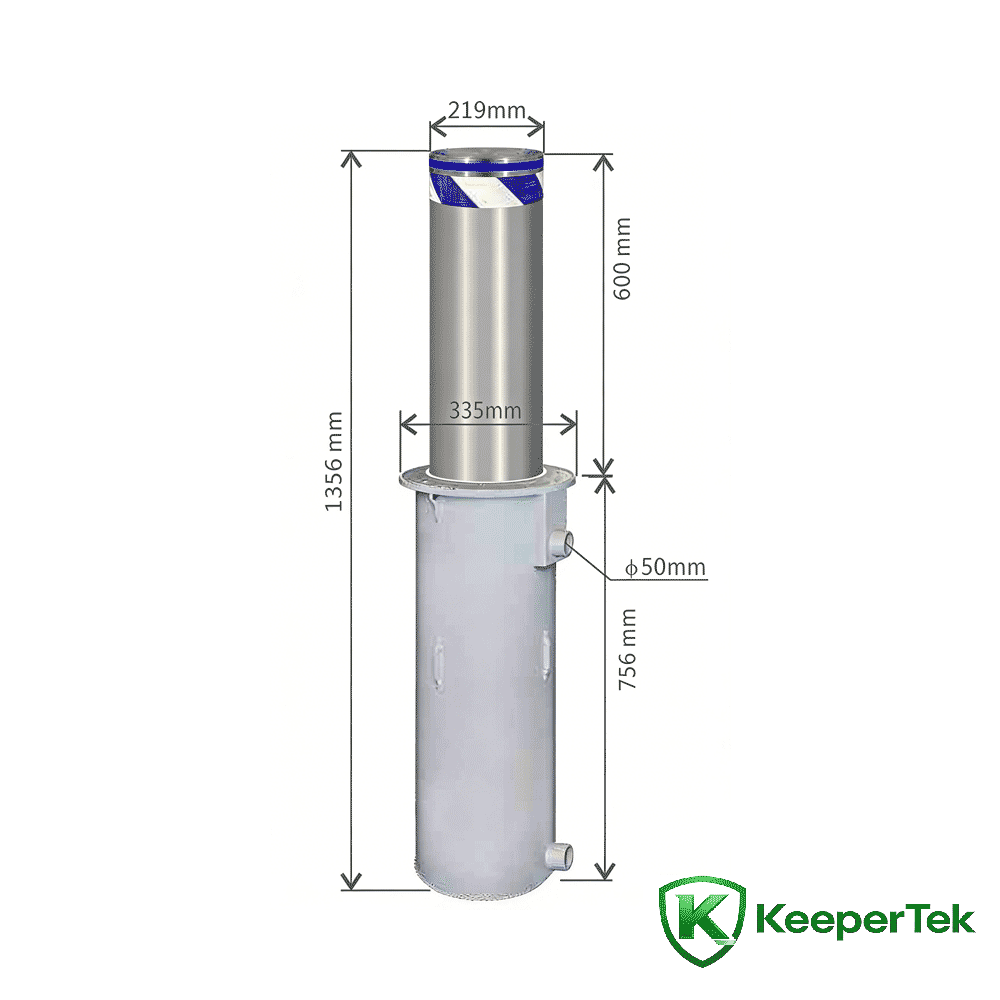

Ububanzi besilinda: 219mm

Ukuphakama kwesilinda: 600mm

Ubukhulu besilinda: 6mm

Impahla yesilinda: 304 insimbi engagqwali

Imininingwane yebhakede eshumekiwe: 335mmx335mmx756mm

Ibanga elingangeni manzi: IP68

Izinga lokushisa lokusebenza: -35℃～75℃

Ukucaciswa kwe-Flange: ububanzi be-flange 335mm x ukujiya 6mm

Izimpawu eziyisixwayiso: ifilimu ekhanyayo yokukhanya okuphezulu kakhulu, izibani ze-LED

Inani lokuthunyelwe komhlahlandlela: 3

Izici

Ingasetshenziswa ngokujwayelekile ngemuva kokushayiswa yimoto ethwele amathani ayi-8;

Ingasetshenziswa ngokujwayelekile ngemuva kokumelana nokudlula kwemoto engamathani ayi-100.；

I-IP68 engangeni manzi, isengasetshenziswa ngokujwayelekile ngisho nangemva kokucwiliswa emanzini:

Isakhiwo siqinile futhi sihlala isikhathi eside. I-outlet kanye ne-drain outlet yenziwe ngensimbi ye-carbon engu-4mm. Umgqomo wangaphandle uklanywe ngamabha ashiselwe angu-4.； ；

Ngokusebenzisa ifilimu ekhanyayo engu-5CM ebanzi, ukubukeka kungafinyelela ngaphezu kwama-90%;

Ibha yokukhanya eyisixwayiso ye-LED yokukhanya okuphezulu okungakhethwa ingathuthukisa umphumela wokuxwayisa wasebusuku.

I-flange yephaneli yamukela ukwakheka kwephethini yokulwa nokushelela, futhi ukujiya kwe-flange kungakhethwa ngo-10mm/6mm;

Ugqinsi lwe-flange phezulu kwekholomu ngu-10mm/6mm;

Ukwenza ngokwezifiso okungajwayelekile kuyamukelwa. Ububanzi, ukujiya, ubude, ukubukeka, isivinini, njll. kwekholomu yokuphakamisa kungenziwa ngendlela oyifisayo.

Izinketho zokumisa

Ukuphakama: ukuphakama 400mm, ukuphakama 800mm, ukuphakama 1000mm, ukuphakama 1200mm, ukuphakama 1500mm

Ubukhulu: 8mm ukujiya, 10mm ukujiya, 12mm ukujiya, 16mm ukujiya, 20mm ukujiya

Ububanzi: 168mm ububanzi, 273mm ububanzi, 325mm ububanzi, abanye
