Ikholomu yokuphakamisa izibhelu

Ikholomu yokuphakamisa amanzi aqinisiwe KT-DX01

Imingcele yezobuchwepheshe

Ububanzi besilinda: 219mm

Ukuphakama kwesilinda: 600mm

Ubukhulu besilinda: 6mm

Isivinini sokuphakamisa: 2S~4S

Inombolo yezinsika zomhlahlandlela: 4

Ibanga elingangeni manzi: IP68

Impahla yesilinda: 304 insimbi engagqwali

Izinga lokushisa lokusebenza: -35°C~75°C

Amandla kagesi: 220V/350W

Indlela yokulawula: ibhokisi lokulawula/isilawuli kude esingenantambo

Uphawu oluyisixwayiso: Umugqa wokukhanya we-LED wokukhanya okuphezulu kakhulu

Ukucaciswa kwe-Flange: ububanzi 395mm x ukujiya 10mm

Umsebenzi wesimo esiphuthumayo: Ifakwe ugesi wezimo eziphuthumayo we-EPS kanye nokwehla kwenkinobho eyodwa

Imisebenzi enwetshiwe: ukuqashelwa kwepuleti lelayisense/ukuxhumana kwe-alamu yomlilo yokulawula ukufinyelela

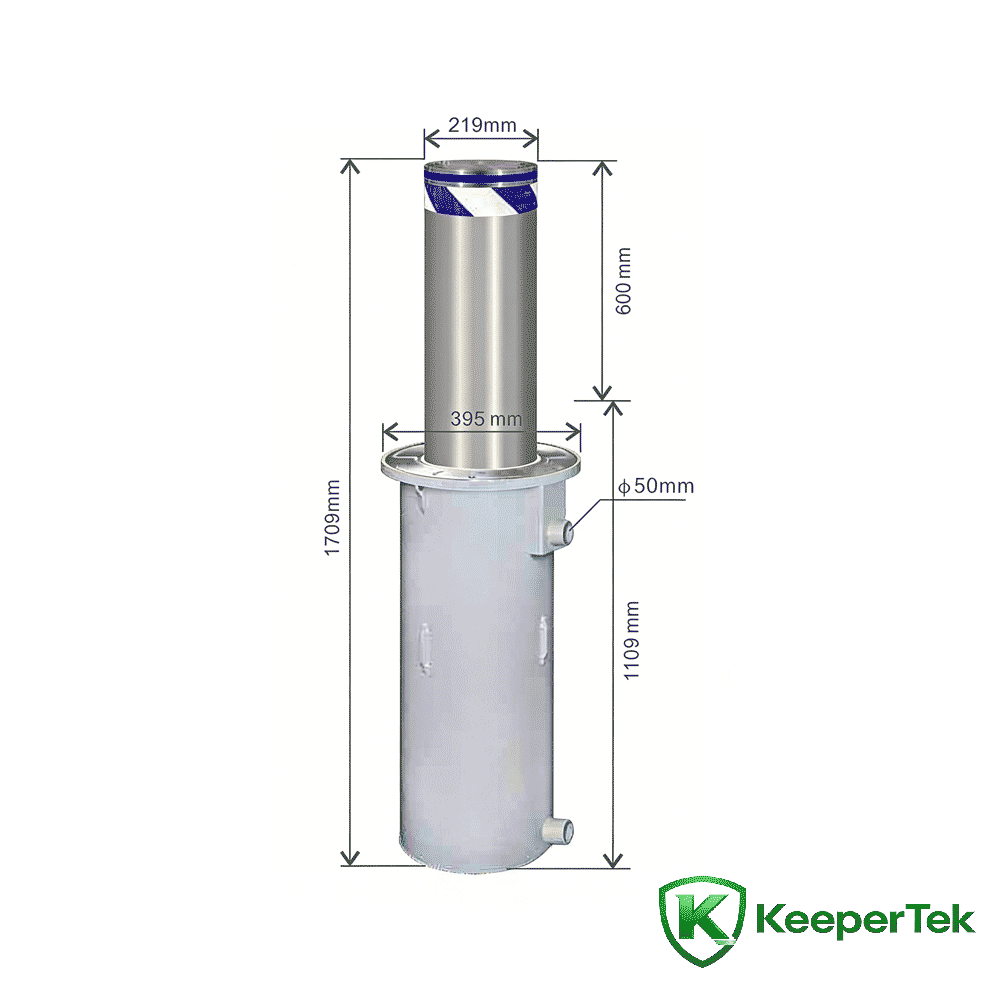

Imininingwane eshumekiwe: ubude 395mmx ububanzi 395mmx ukujula 1109mm

Izici

Ingasetshenziswa ngokujwayelekile ngemuva kokumelana nokudlula kwemoto engamathani ayi-100.；

I-IP68 engangeni manzi, isengasetshenziswa ngokujwayelekile ngisho nangemva kokucwiliswa emanzini:

Isakhiwo siqinile futhi sihlala isikhathi eside. I-outlet kanye ne-drain outlet yenziwe ngensimbi ye-carbon engu-4mm. Umgqomo wangaphandle uklanywe ngemishayo engu-4 eshiselwe.；

Kusetshenziswa ifilimu ekhanyayo engu-5CM ekhanyayo, ukubonakala kungaphezu kuka-90%;

Ibha yokukhanya eyisixwayiso ye-LED yokukhanya okuphezulu kokuzithandela ithuthukisa ngempumelelo umphumela wokuxwayisa wasebusuku.

I-flange yephaneli yamukela ukwakheka kwephethini yokulwa nokushelela, futhi ukujiya kwe-flange kungakhethwa ngo-10mm/6mm;

Ugqinsi lwe-flange phezulu kwekholomu ngu-10mm/6mm, futhi ukwesekwa okungajwayelekile kuyamukelwa ukuze kwenziwe ngendlela oyifisayo. Ububanzi, ukujiya, ukuphakama, ukubukeka, isivinini, njll. kwekholomu ephakamisayo kungenziwa ngendlela oyifisayo;

Ukuphakanyiswa kungalawulwa ngokuhambisana nezinye izinto zokusebenza ezifana nokubonwa kwepuleti lelayisense, amasango okuvimbela ukufinyelela, i-infrared, i-radar, inzwa yaphansi, amarobhothi, imizila ye-tidal, amasistimu e-alamu yomlilo, njll.；

Isistimu yokuphatha yesikhulumi samafu siyasekelwa ukuze kulawulwe ikholomu ephakamisayo, futhi i-APP yeselula ingasetshenziswa ukulawula ukude ukukhuphuka nokuwa kwekholomu ephakamisayo.

Izinketho zokumisa

Ukuphakama: ukuphakama 400mm, ukuphakama 800mm, ukuphakama 1000mm, ukuphakama 1200mm, ukuphakama 1500mm

Ubukhulu: 8mm ukujiya, 10mm ukujiya, 12mm ukujiya, 16mm ukujiya, 20mm ukujiya

Ububanzi: 168mm ububanzi, 273mm ububanzi, 325mm ububanzi, abanye
