Isilawuli sokuqondisa indawo yokupaka

indawo yangaphandle isilawuli KT-WB18

Imingcele yezobuchwepheshe

Impahla yegobolondo: ishidi likathayela

Indlela yokuxhumana: ishaneli engu-1 RF470MHz, i-CAN engu-1, isiteshi esingu-1 RS485

I-voltage esebenzayo: AC 110 ~ 240V

Izinga lokushisa lokusebenza: -30 ℃ ~ +75℃

Ukuswakama kwemvelo: ≤90%RH (akukho ukujiya)

Ukusetshenziswa kwamandla: ≤2W

Ibanga lokuxhumana: CAN: ≤1000m

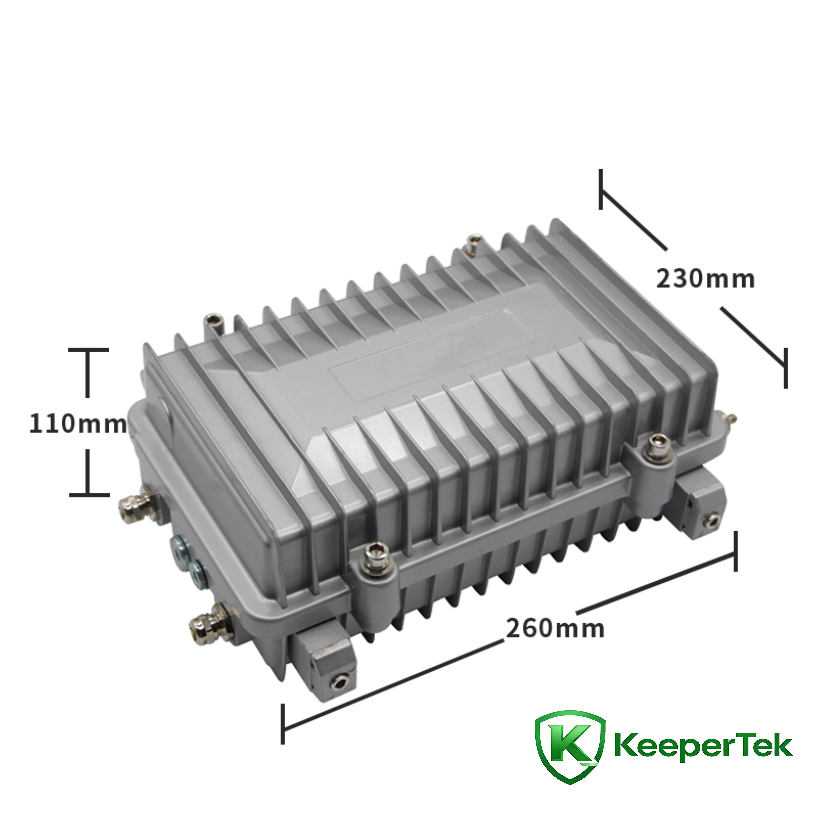

Usayizi wokucaciswa: 260*230*110mm

Amasistimu asebenzayo: uhlelo lokuqondisa ukupaka kwangaphandle

Izici

Isilawuli sendawo yangaphandle sisetshenziselwa ukuxhuma isilawuli esimaphakathi kanye nezitholi zezindawo zokupaka ze-geomagnetic ezinemodi ekabili, izikrini zokuqondisa, njll. Isilawuli sendawo yangaphandle siqoqa ulwazi lwesimo sazo zonke izitholi zendawo yokupaka ze-geomagnetic endaweni yaso ngesikhathi sangempela ngokuxhumana okungenantambo kwe-RF470MHz, futhi silayisha ulwazi lwesimo sazo zonke izindawo zokupaka kusilawuli esimaphakathi esingaphandle. Izinga lokuvikela lesilawuli sendawo yangaphandle liphezulu njenge-IP66, elingamelana ngempumelelo nendawo enzima yezindawo zokupaka zangaphandle.

Sebenzisa indlela yokuphakela amandla eseduze kanye nokuxhumana okungenantambo nomtshina ukuze unciphise izintambo zokwakha kanye nezindleko zokulungisa kamuva.

Ukwamukela i-32-bit ARM processor ethuthuke emhlabeni wonke kanye nedizayini yezinga lezimboni ngokugcwele ukuze kuqinisekiswe ukuzinza nokuthembeka komkhiqizo.

Isilawuli samukela idizayini engangeni manzi futhi ingangenisi uthuli, enezinga lokuvikela le-IP66, evumelana nezimfuneko zezindawo zangaphandle ezinonya.

Umzila onamaleveli amaningi onesilawuli esimaphakathi sangaphandle, isistimu inamakhono okuxhumana aqinile

Izindlela zokuxhumana ezenziwe ngokwezifiso
