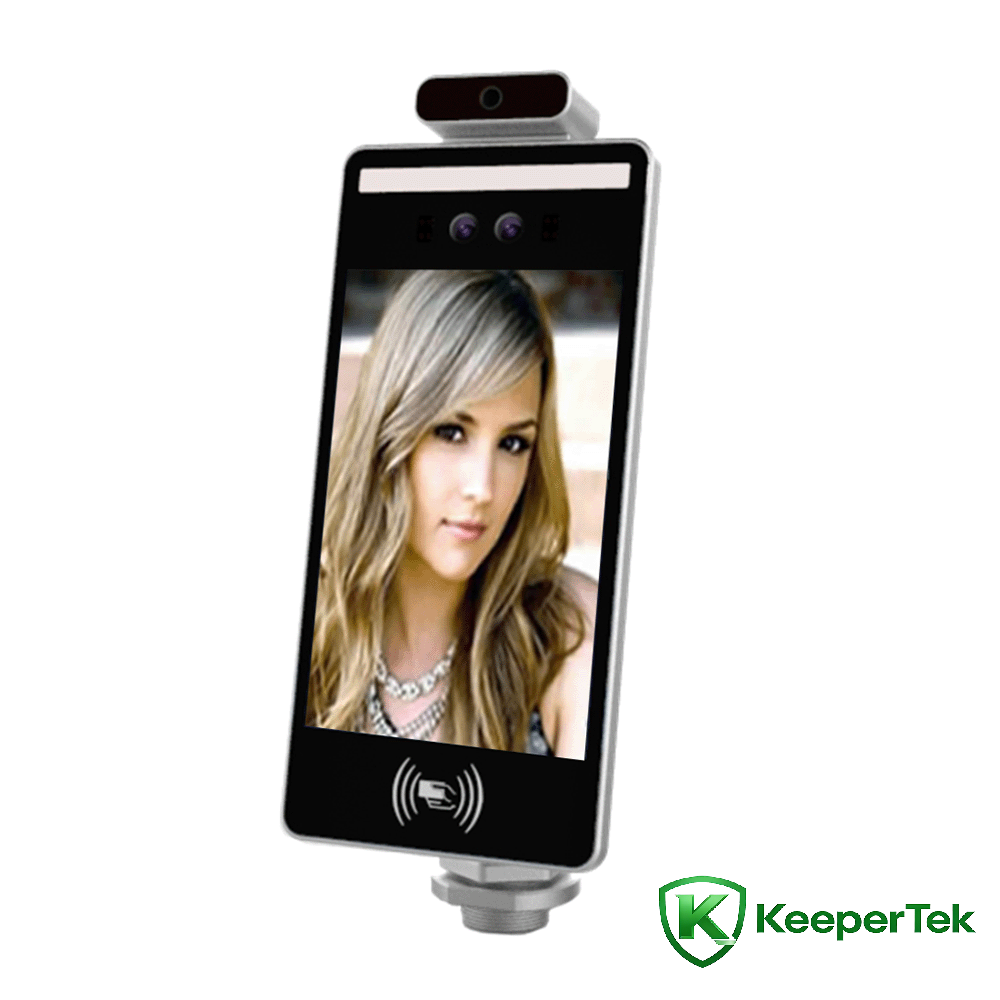

Umshini wokubona ubuso

8ubuso obuyintshi khomba Swayipha ikhadi I-Thermometry Umshini wokuhlanganisa wonke I-KT- FR009

Imingcele yezobuchwepheshe

Iphrosesa: I-Dual-core ARM Cortex-A7

Isistimu yokusebenza: Isistimu yokusebenza ye-Linux eshumekiwe

Isitoreji: 1GB RAM + 8GB eMMC

I-engeli yokubuka: I-engeli yokubuka emile: 30°； I-engeli yokubuka evundlile: 30°

Idivayisi yokuthwebula: 1/2.8" Progressive Scan CMOS

Ububanzi: 6mm

Imojuli yokufunda ikhodi ye-QR (uyazikhethela): isekela Ikhodi ye-QR, i-PDF417, i-ECC200, i-EAN13, i-Code128 namanye amakhodi e-QR kanye namakhodi anohlangothi olulodwa

Imojuli yokuswayipha ikhadi: 13.56MHz, isekela i-Mifare S50, amakhadi e-S70, amakhadi e-ultralinght, amakhadi e-NTAG, i-DESFire D21, D41, D81, amakhadi we-CPU angaxhunywanga

Imojuli ye-Wifi (ongakukhetha): 2.4GHz ibhendi yefrikhwensi, iphrothokholi ye-IEEE802 b/g/n； Ibhendi yefrikhwensi engu-5GHz, iphrothokholi ye-IEEE802 a/n/ac

Isipikha: okuqukethwe okujwayelekile, kokudlala ngezwi kungenziwa ngendlela oyifisayo

Indawo yokulinganisa: 16℃-40℃, akukho moya endlini (bona amanothi ukuze uthole imininingwane)

Ilensi yokulinganisa izinga lokushisa: Ilensi yoqobo engeniswe ivela eYurophu

Uhlobo lwenzwa: Inzwa yebanga lezokwelapha engeniswe isuka eYurophu

Ukunemba kokulinganisa: ±0.3℃

Ukulungiswa kwezinga lokushisa: 0.1℃

Ibanga lokulinganisa izinga lokushisa: ≤30cm

Isikhathi sokuphendula: 300ms

Ubude bokubonwa: 1.2 ~ 2.2 amamitha, i-engeli iyalungiseka

Ibanga lokubonwa: 0.3~1.5 amamitha, okuguquguqukayo kuye ngelensi

Isikhathi sokuqaphela: ngaphansi kwamasekhondi angu-0.3

Umthamo wokuqopha: 80,000 amarekhodi wezifinyezo

Umthamo wobuso: 30,000

Ukukhanya kwesikrini: ≥400 cd/m2

Ukushintsha okukhiphayo: 1 ukushintsha okukhiphayo, amanye amachweba we-GPIO angenziwa ngezifiso

Isixhumi esibonakalayo se-USB: 1 isixhumi esibonakalayo se-USB njengedivayisi

Isixhumi esibonakalayo senethiwekhi: 1 RJ45 10M/100M imbobo ye-Ethernet eguquguqukayo, imbobo yenethiwekhi ye-Gigabit eyenziwe ngokwezifiso

I-Wiegend interface: 1 Wiegand interface okukhiphayo, 1 Wiegand interface okokufaka

Isixhumi esibonakalayo sokuxhumana: 1 RS485 interface

Ikhamera: Ikhamera ye-Binocular, ukukhanya okubonakalayo kanye ne-infrared eseduze, isekela ukutholwa komzimba ophilayo

Amaphikseli asebenzayo: amaphikseli asebenzayo ayizigidi ezi-2.1, 1920*1080

Ukukhanya okuncane: umbala 0.01Lux @F1.2 (ICR); okumnyama nokumhlophe 0.001Lux @F1.2 (ICR)

Isilinganiso sesignali-kuya-kumsindo: ≥50db (I-AGC IVALIWE)

Ibanga elinamandla elibanzi: 120db, ukuchayeka kwe-ISP kwe-algorithm ingxenye yobuso

Umbhalo wekhodi wevidiyo: H.265 Umbhalo wekhodi wephrofayela Eyinhloko/H.264 BP/MP/HP umbhalo wekhodi/MJPEG

Izinga lokushisa lokusebenza: -30 ℃ - +60 ℃ (izinga lokushisa lendawo yokulinganisa izinga lokushisa: +16 ℃ - +40 ℃)

Umswakama osebenzayo: 0 ~ 90% umswakama ohlobene, akukho ukufingqa

Izinga lesifutho sikasawoti: Rp6 noma ngaphezulu

I-Antistatic: othintana naye ± 6KV, umoya ± 8KV

Ukunikezwa kwamandla: DC12V/2A

Izinga lokuvikela: IP42

Amandla esisetshenziswa: 20W(MAX)

Usayizi wesisetshenziswa: 252 (ubude) * 136 (ububanzi) * 26 (ubukhulu) mm

Izici

Sekela ukutholwa komzimba bukhoma kwe-binocular

Isekela ukulandelwa kobuso nokuvezwa kwabantu abahamba ezindaweni ezikhanyayo ezingemuva

I-algorithm ehlukile yokuqaphela ubuso, ibona kahle ubuso, isikhathi sokubonwa kobuso singaphansi kwama-0.3s

Ngokusebenzisa uhlelo lokusebenza lwe-LINUX, uhlelo luzinzile

Ukusakaza kwefomethi yombhalo wekhodi we-H.265 kuxhunywe ngokuqondile ku-NVR namanye amadivayisi esitoreji ngephrothokholi ye-ONVIF nephrothokholi ye-GB28181.

Isekela isitoreji sasendaweni ekhadini le-TF, ngokugcinwa okuqhubekayo kwezithombe unyaka ongu-1 namavidiyo enyanga engu-1 noma ngaphezulu (kuya ngomthamo wekhadi le-TF ozikhethela lona)

Isho isikhathi sokusebenza phakathi kokuhluleka kwe-MTBF＞50000h

Isekela imitapo yolwazi yokuqhathanisa yobuso engu-30,000+ namarekhodi okuqashelwa angu-80,000

Isekela ukukalwa kwezinga lokushisa lomzimba ebangeni eliseduze kanye ne-alamu yokushisa okuphezulu

Ukudokwa kwephrothokholi yokusebenzelana kwedatha yezinga lokushisa okusekelayo

Izivumelwano zokusebenzisana ezinothile, ezisekela i-TCP/IP, i-UDP, i-RTP, i-RTSP, i-RTCP, i-HTTP, i-DNS, i-DDNS, i-DHCP, i-SMTP, i-UPNP, i-MQTT izivumelwano ngaphansi kwe-Windows/Linux nezinye izinkundla

Izinga lokushisa lokusebenza: -30 ℃-60 ℃ (izinga lokushisa lendawo yokushisa: +16 ℃- +40 ℃)

IP42 ingangeni manzi futhi ingangenisi uthuli

Izixhumanisi zezingxenyekazi zekhompuyutha ezinothile (I/O, WG26, WG34, RJ45, USB, RS485)

8-intshi IPS ebuka ngokugcwele isibonisi se-HD, akukho ukugcotshwa noma ukubambezeleka ezithombeni

Ukuzuza okuzenzakalelayo kanye nebhalansi emhlophe ezenzakalelayo kuvumela umbala wangempela wesithombe ukuthi ubuyiselwe ngokwemvelo

Inzwa yeleveli yokukhanya emnyama eyakhelwe ngaphakathi enikezelwe ukubhekwa kwevidiyo, ukubonwa kokukhanya okuphansi okunembe kakhudlwana

Ukunciphisa umsindo kwe-3D kanye nobuchwepheshe bokungena kwenkungu kwenza izithombe zokuqapha ngaphansi kokukhanya okuphansi zicace futhi zinemininingwane eyengeziwe

Sekela ukuvinjwa ingxenye yendawo yevidiyo

Sekela umbhalo wekhodi we-ROI

Ibhalansi emhlophe ezenzakalelayo, ibhalansi emhlophe eyenziwe ngesandla iyatholakala

Sekela ukuncishiswa komsindo kwe-2D nokuncishiswa komsindo kwe-3D

Isekela ukukhanya kwevidiyo, ukugqama, umbala, ukugcwaliswa kwesikhala, nokulungiswa kwe-gamma

Ukusekela ukusetha isikhathi esiphezulu sokuchayeka esizenzakalelayo

Isekela ukuchayeka kobuso obuhlakaniphile kanye nezilungiselelo zokuthuthukisa ezihlakaniphile zobuso
