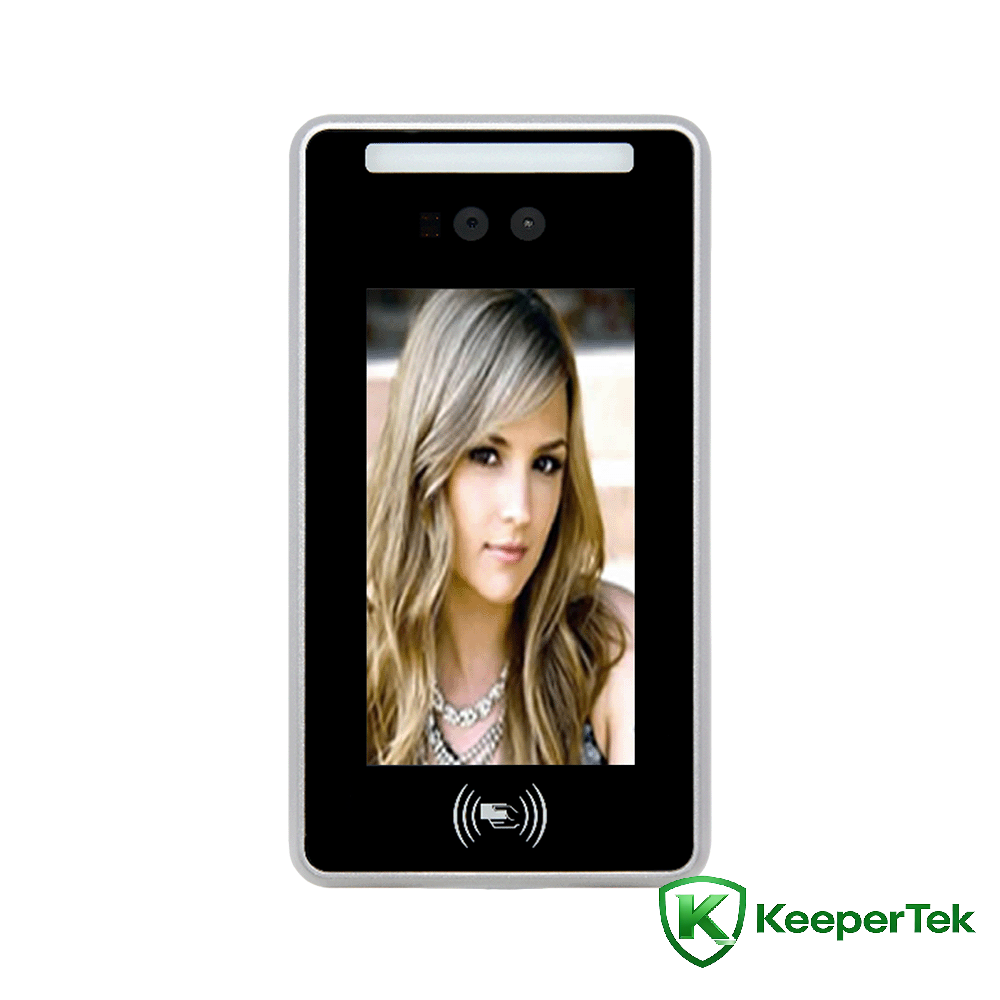

Umshini wokubona ubuso

7intshi abantu Ikhadi lokubona ubuso liswayipha konke-kokukodwa umshini I-KT- FR007

Imingcele yezobuchwepheshe

Iphrosesa: I-Dual-Core ARM Cortex-A7, @1.0GHz

Isistimu yokusebenza: Isistimu yokusebenza ye-Linux

Isitoreji: 8GB EMMC

Ikhamera: I-Binocular, amaphikseli asebenzayo angu-2.1 million, 1920*1080

Idivayisi yokuthwebula: 1/2.8" Progressive Scan CMOS

Ububanzi: 6mm

Imojuli yokuswayipha ikhadi: 13.56MHz, isekela i-Mifare S50, amakhadi e-S70, amakhadi e-ultralinght, amakhadi e-NTAG, i-DESFire D21, D41, D81, amakhadi we-CPU angaxhunywanga

Imojuli ye-WIFI: IEEE 802.11b/g/n ejwayelekile, isekela ibhendi yefrikhwensi engu-2.4GHz, ibanga lesivinini 1Mbps-150Mbps

Imojula ye-Bluetooth: 8DPSK, π/4DQPSK, GFSK, ibanga lesivinini 1Mbps-2, 3Mbps

Isipikha: okuqukethwe okujwayelekile, kokudlala ngezwi kungenziwa ngendlela oyifisayo

Ubude bokubonwa: 1.2 ~ 2.2 amamitha, i-engeli iyalungiseka

Ibanga lokubonwa: 0.5~1.5 amamitha, okuguquguqukayo kuye ngelensi

I-engeli yobuso: 30 degrees kwesokunxele nakwesokudla, 30 degrees phezulu naphansi

Isikhathi sokuqaphela: ngaphansi kwamasekhondi angu-0.5

Umthamo wesitoreji: 60,000 amarekhodi wezifinyezo

Umthamo wobuso: 20,000

Izinhlobo zamakhadi ezingaswayipha: 13.56MHz, inombolo ye-serial yekhadi le-ID, i-Mifare, i-NFC (isifundi sekhadi le-ID eyakhelwe ngaphakathi)

Ukushintsha okukhiphayo: 1 ukushintsha okukhiphayo, amanye amachweba we-GPIO angenziwa ngezifiso

Isixhumi esibonakalayo se-USB: 1 isixhumi esibonakalayo se-USB njengedivayisi

Isixhumi esibonakalayo senethiwekhi: 1 RJ45 10M/100M imbobo ye-Ethernet eguquguqukayo, imbobo yenethiwekhi ye-Gigabit eyenziwe ngokwezifiso

I-Wiegend interface: 1 Wiegand interface okukhiphayo, 1 Wiegand interface okokufaka

Isixhumi esibonakalayo sokuxhumana: 1 RS485 interface

Ikhamera: Ikhamera ye-Binocular, ukukhanya okubonakalayo kanye ne-infrared eseduze, isekela ukutholwa komzimba ophilayo

Amaphikseli asebenzayo: amaphikseli asebenzayo ayizigidi ezi-2.1, 1920*1080

Ukukhanya okuncane: umbala 0.01Lux @F1.2 (ICR); okumnyama nokumhlophe 0.001Lux @F1.2 (ICR)

Isilinganiso sesignali-kuya-kumsindo: ≥50db (I-AGC IVALIWE)

Izinga lokushisa lokusebenza: -30 ℃ - +60℃

Umswakama osebenzayo: 0 ~ 90% umswakama ohlobene, akukho ukufingqa

Amandla esisetshenziswa: 10W (MAX)

Izinga lesifutho sikasawoti: Rp6 noma ngaphezulu

I-Antistatic: othintana naye ± 6KV, umoya ± 8KV

Ukunikezwa kwamandla: DC12V/2A

Izinga lokulwa nezibhelu: IK06

Izinga lokuvikela: IP66

Ukucaciswa kwesikrini: 7-intshi high-definition yesikrini se-IPS

Usayizi wesisetshenziswa: 252 (ubude) * 136 (ububanzi) * 26 (ubukhulu) mm

Izici

Sekela ukutholwa komzimba bukhoma kwe-binocular

Isekela ukulandelwa kobuso nokuvezwa kwabantu abahamba ezindaweni ezikhanyayo ezingemuva

I-algorithm ehlukile yokuqaphela ubuso, ibona kahle ubuso, isikhathi sokubonwa kobuso singaphansi kwama-0.5s

I-CPU eyakhelwe ngaphakathi

Ngokusebenzisa uhlelo lokusebenza lwe-LINUX, uhlelo luzinzile

Isho isikhathi sokusebenza phakathi kokuhluleka kwe-MTBF＞50000h

Isekela imitapo yolwazi yokuqhathanisa yobuso engafika ku-20,000+ namarekhodi okuqashelwa angu-60,000

Izivumelwano zokusebenzisana ezinothile, ezisekela i-TCP/IP, i-UDP, i-RTP, i-RTSP, i-RTCP, i-HTTP, i-DNS, i-DDNS, i-DHCP, i-SMTP, i-UPNP, i-MQTT izivumelwano ngaphansi kwe-Windows/Linux nezinye izinkundla

Izinga lokushisa lokusebenza: -30℃-60℃

IP66 ingangeni manzi futhi ingangenisi uthuli

Imojula yokuswayipha ikhadi le-IC eyakhelwe ngaphakathi

Izixhumanisi zezingxenyekazi zekhompuyutha ezinothile (I/O, WG26, WG34, RJ45, USB, RS485)

7-intshi IPS ebuka ngokugcwele isibonisi se-HD, akukho ukugcotshwa noma ukubambezeleka ezithombeni
